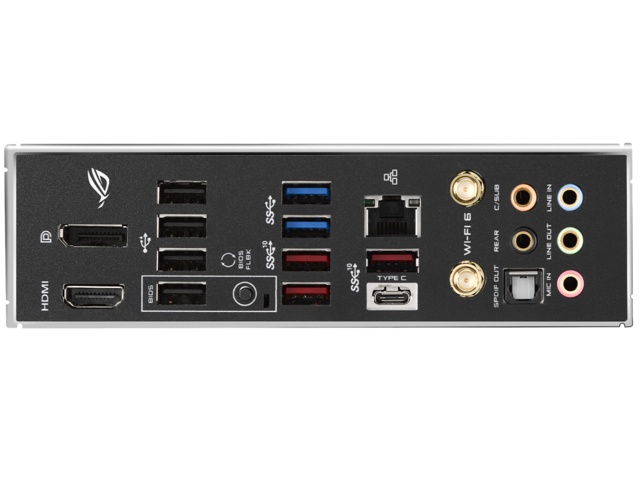

Интерфейси:

• 1 x Intel® I225-V 2.5Gb Ethernet
• 1 x DisplayPort
• 1 x HDMI
• 2 x USB 2.0
• 2 x USB 3.2 Gen 1
• 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C)
• 1 x Optical S/PDIF out
• 1 x USB BIOS FlashBack^™ Button(s)
• 5 x позлатени аудио жака
• ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Слотове за разширение:

• Intel 10-то поколение процесори
  2 x PCIe 3.0 x16 (x16 or dual x8)
• Intel Z490 Chipset
  1 x PCIe 3.0 x4 (x4 режим)
  3 x PCIe 3.0 x1

Конектори:

• 1 x M.2_FAN connector
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 2 x Addressable RGB header
• 1 x AAFP connector
• 2 x Aura RGB Strip Headers
• 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
• 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Chassis intrusion header is inbuilt)
• 1 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x CPU_OV jumper
• 1 x Q-Code
• 1 x VRM_HS_FAN Header

Съхранение:

• Intel Z490 Chipset:
  1 x M.2 Socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (SATA & PCIE 3.0 x 4 режим)
  1 x M.2 Socket 3, с M key, тип 2242/2260/2280/22110 поддържани дискови устройства (PCIE 3.0 x 4 режим)
  6 x SATA 6Gb/s порта
  Поддържа Raid 0, 1, 5, 10
  Intel Optane Memory Ready

Памет:

• 4 x DDR4 DIMM цокъла, поддържащи до 128GB системна памет
• Архитектура с две канални памети
• 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, небуферирана памет
•  Intel Extreme Memory Profile

Wi-Fi & Bluetooth:

• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) поддържа 1024QAM/OFDMA/MU-MIMO
• Supports dual band frequency 2.4/5 GHz
• Supports channel bandwidth: HT20/HT40/HT80/HT160
• Bluetooth v5.1
