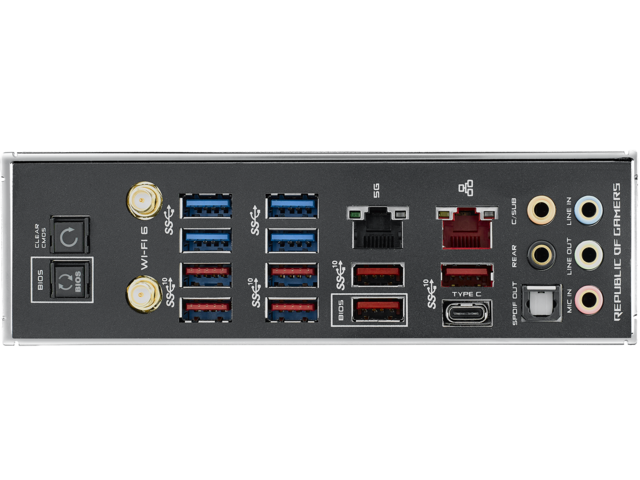

Интерфейси:
- 1 x Optical S/PDIF out
- 1 x Clear CMOS button(s)
- 1 x ASUS Wi-Fi Module
- 1 x USB BIOS Flashback® Button(s)
- 1 x Gold-plated audio jacks
- 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
- 8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
- Anti-surge LAN (RJ45) port
- 1 x AQC-111C 5G LAN port
Слотове за разширение:
-
2 x PCIe 4.0 x16 (x16 or dual x8)
-
2 x PCIe 3.0 x16 (x16 or dual x8)
-
1 x PCIe 3.0 x16 (x8 mode)
-
1 x PCIe 4.0 x16 (x4 mode)
-
1 x PCIe 4.0 x1
Конектори:
- 1 x PCH_FAN
- 2 x Aura RGB Strip Header(s)
- 2 x Addressable Gen 2 header(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
- 8 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x Optional Fan connector(s)
- 1 x AIO_PUMP connector
- 1 x H_AMP fan connector
- 1 x W_PUMP+ connector
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Slow Mode switch(es)
- 1 x LN2 Mode header(s)
- 1 x Power-on button(s)
- 1 x Reset button(s)
- 1 x Node Connector(s)
- 1 x Safe Boot button
- 1 x ReTry button
- 1 x System panel connector
- 1 x W_IN header
- 1 x W_OUT header
- 1 x W_FLOW header
- 1 x Thermal sensor connector
- 1 x Speaker connector
- 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
- 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Съхранение:
- 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
- 8 x SATA 6Gb/s порта
- Поддържа RAID 0, RAID 1 и RAID 10
Памет:
- 4 x DDR4 DIMM слота, поддържащи до128 GB системна памет
- Архитектура с две канални памети
- Поддръжка за модули памет DDR4 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) /3200/3000/2933/2800/2666/2400/2133 MHz
Wireless Data Network и Bluetooth:
- 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Поддържа MU-MIMO
- Поддържа двубандова честота 2.4/5 GHz
- Bluetooth 5.0
