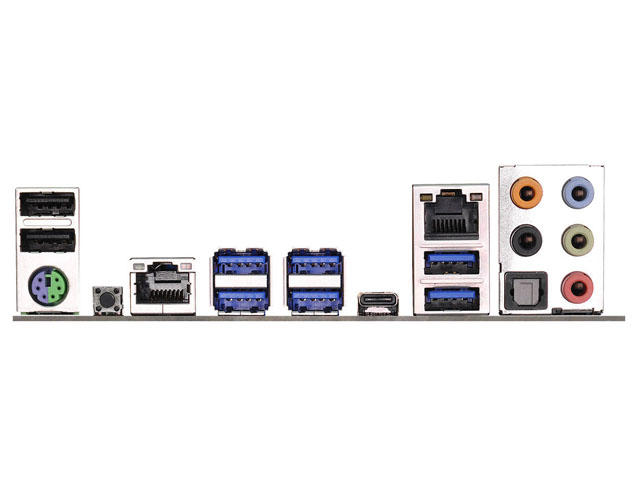

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x Optical SPDIF Out Port
• 2 x USB 2.0
• 1 x USB 3.1 Type-C (10 Gb/s) (ASMedia ASM1142)
• 4 x USB 3.0 (ASMedia ASM1074 hub)
• 2 x USB 3.0
• 2 x RJ-45 LAN с LED индикатор
• 1 x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 5 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x8 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x8 (PCIE1) / x8 (PCIE2) / x8 (PCIE4) / x8 (PCIE5))( при инсталиран CPU с 28 платна , PCIE1 / PCIE2 / PCIE3 / PCIE4 / PCIE5 ще работи на x16 / x0 / x4 / x8 / x0 или x8 / x8 / x4 / x8 / x0 , и PCIE5 ще бъде деактивиран)
• 1 x Half-size Mini-PCI Express Slot
• Поддържа AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX and CrossFireX( за поддръжка  на 3 - Way CrossFireX  и 3 - Way SLI  когато се ползва CPU с 28 lanes, е необходимо да инсталирате VGA карти на  PCIE1 / PCIE2 / PCIE4 ( x8 / x8 / x8 )
• Поддържа NVIDIA Quad SLI, 4-Way SLI, 3-Way SLI and SLI (при инсталиран  CPU с 28 lanes, 4 - Way CrossFireX  и 4 - Way SLI  не се поддържат . За поддръжка  на 4 - Way CrossFireX  и 4 - Way SLI  , е необходимо инсталиране на процесора с 40 lanes)

( при  инсталиран Ultra М.2 PCI Express модул , PCIE3 слот ще бъде деактивиран)

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x HDD Saver Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector
• 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Vertical Type A USB 3.0
• 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Dr. Debug with LED
• 1 x Power Switch with LED
• 1 x Reset Switch with LED
• V-Probe™: 7-set of onboard voltage measurement points laid
• Rapid OC Buttons: +/- buttons to adjust OC frequency
• 1 x Menu Button
• 1 x PCIe ON/OFF Switch
• 1 x Slow Mode Switch
• 1 x LN2 Mode Switch
• 1 x BIOS Selection Switch
• 1 x Direct Key Button

Съхранение:

• 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 и Intel Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (S_SATA3_3 connector е споделен с  M.2 Socket (M2_1)) ( ( RAID се поддържа само на SATA3_0 ~ SATA3_5 portowe)

• 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)
• 1 x Ultra M.2 Socket (ULTRA_M2), supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• 1 x M.2_SSD (NGFF) Socket 3 (M2_1), supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

Комплекта съдържа:

• 1 x ASRock USB 3.1 Card/A+A
• 3 x ASRock Flexible SLI Bridge Connector Cables (2 x 10 cm, 1 x 14 cm)
• I/O Shield
• 6 x SATA Data кабел
• 1 x HDD Saver кабел
• 2 x Screws for M.2 Sockets
• 1 x Screw for mini-PCIe Slot

Сертификати:

•  FCC, CE, WHQL
•  ErP/EuP ready (ErP/EuP ready power supply is required)
