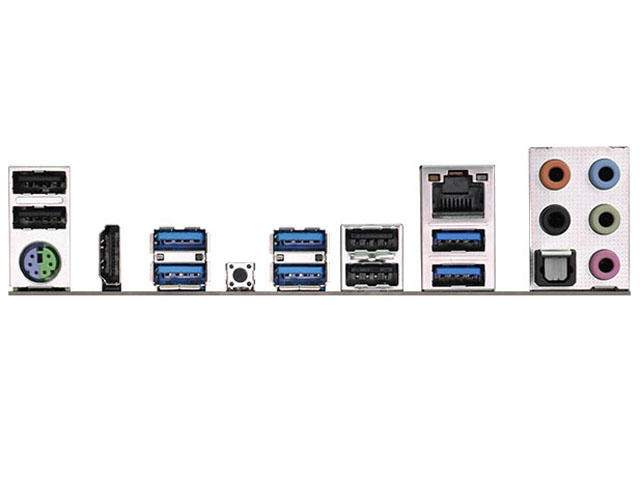

Интерфейси:

• 1 x PS/2 мишка/клавиатура
• 1 x HDMI
• 1 x Optical SPDIF Out
• 4 x USB 2.0
• 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 2 x USB 3.0 Ports (Intel^® Z97) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN с LED индикатор
• 1 x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 3 x PCI Express 3.0 x16 Слотове (PCIE1/PCIE2/PCIE4: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4); triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE4))
• 1 x PCI Express 2.0 x16 Слот (PCIE6: x4 mode)
• 2 x PCI Express 2.0 x1 Слотове
• Поддържа AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX and CrossFireX
• Поддържа NVIDIA Quad SLI and SLI

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 4 x Chassis Fan Connectors (1 x 4-pin, 3 x 3-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x HDD Saver Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector ( само с актуалицирана до последна версия на BIOS)
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Power Switch with LED
• 1 x Reset Switch with LED
• V-Probe™: 2 x 7-set of onboard voltage measurement points laid
• Rapid OC Buttons: +/- buttons to adjust OC frequency
• 1 x Menu Button
• 1 x PCIe ON/OFF Switch
• 1 x Post Status Checker (PSC)
• 1 x Slow Mode Switch
• 1 x LN2 Mode Switch
• 1 x BIOS Selection Switch

Съхранение:

•  6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 13 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug

Аксесоари:

• 1 x ASRock Flexible SLI Bridge Connector кабел
• 4 x SATA Data кабели
• 1 x HDD Saver кабел
• 1 x Screw for M.2_SSD (NGFF) Socket 3

Сертификати:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
