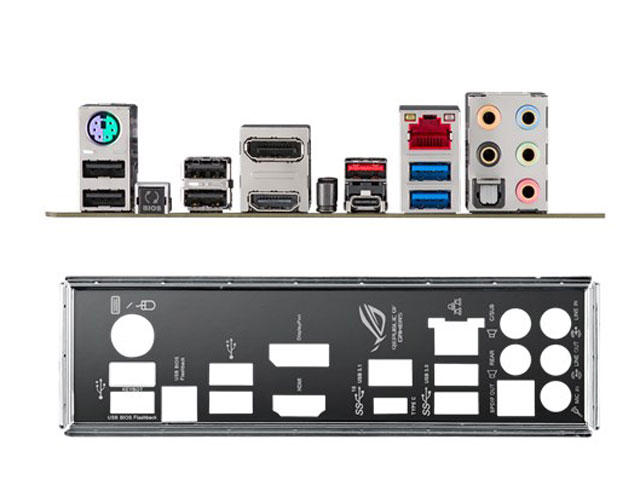

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45)
• 1 x USB 3.1 Type-C
• 1 x USB 3.1 Type-A
• 2 x USB 3.0
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x USB BIOS Flashback Button(s)

Слотове за разширение:

• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
• 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
• 3 x PCIe 3.0/2.0 x1 (x1 mode)

Конектори:

• 1 x AAFP connector
• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
• 2 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 4 x Chassis Fan connector(s) (4 x 4 -pin)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Clear CMOS button(s)
• 1 x Water Pump header (4-pin)
• 1 x LN2 Mode jumper(s)
• 1 x ROG extension (ROG_EXT) header(s)
• 1 x 14-1 pin TPM connector

Съхранение:

• 1 x M.2 Socket 3, , with M Key, тип 2242/2260/2280/22110 поддържащи и двата режима дискови устройства (SATA & PCIE )
• 6 x SATA 6Gb/s port(s), gray, , 4 порта от 2 x SATA Express
• 2 x SATA Express порт
• Поддържа Raid 0, 1, 5, 10
• Intel Rapid Storage Technology supports
• Поддържа Intel Smart Response Technology

Памет:

• 4 цокъла DDR4 DIMM, поддържащи до 64 GB системна памет
• Поддръжка на модули памет DDR4 3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz non-ECC, небуферирана памет

*7ма генерация  Intel CPU поддържа DDR4 до 2400;6та генерация Intel CPU поддържа DDR4 до 2133.

Комплектът включва:

• ASUS Q-Shield
• 4 x SATA 6Gb/s кабел
• 1 x M.2 Screw Package
• 1 x инструмент за инсталиране на CPU
• 1 x SLI bridge(s)
• 1 x Q-connector(s) (1 in 1)
• 1 x ROG Door Hanger(s)

Аудио:

ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Поддържа: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS® ES9023P
- TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
