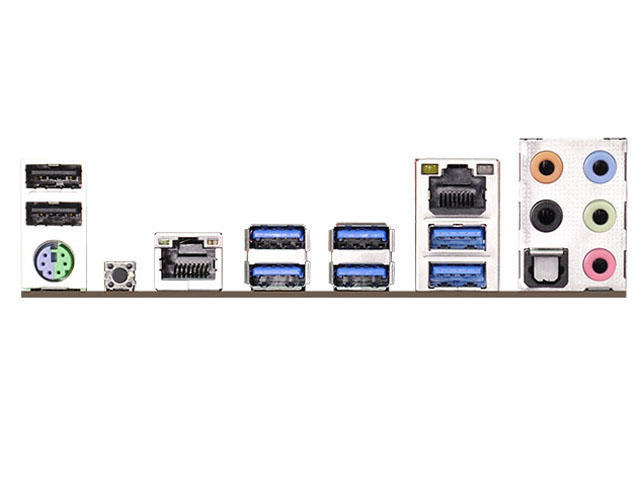

Интерфейси:

• 1 x PS/2 мишка/клавиатура
• 1 x Optical SPDIF Out
• 2 x USB 2.0 Ports
• 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 2 x USB 3.0 Ports (Поддържа ESD Protection (ASRock Full Spike Protection))
• 2 x RJ-45 LAN с LED индикатор
• 1 x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 5 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x8 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x8 (PCIE1) / x8 (PCIE2) / x8 (PCIE4) / x8 (PCIE5)) - ( Ако инсталирате CPU с 28 писти, PCIE1/PCIE2/PCIE3/PCIE4/PCIE5 ще работят на x16/x0/x4/x8/x0 or x8/x8/x4/x8/x0, а PCIE5 ще бъде деактивиран)
• 1 x Half Mini-PCI Express Slot
• Supports AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX и CrossFireX ( Ако инсталирате процесор с 28 пътеки, 4-Way CrossFireX и 4-Way SLI няма да се поддържа)
• Supports NVIDIA Quad SLI, 4-Way SLI, 3-Way SLI и SLI ( Ако инсталирате процесор с 28 пътеки, 4-Way CrossFireX и 4-Way SLI няма да се поддържа)

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x HDD Saver Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector ( само с актуализирана последна версия на BIOS)
• 2 x USB 2.0 Headers (Поддържа 4 USB 2.0 ports) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x Vertical Type A USB 3.0
• 2 x USB 3.0 Headers (Поддържа 4 USB 3.0 ports) (ASMedia ASM1074 hub) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x Dr. Debug with LED
• 1 x Power Switch with LED
• 1 x Reset Switch with LED
• V-Probe™: 7-set of onboard voltage measurement points laid
• Rapid OC Buttons: +/- buttons to adjust OC frequency
• 1 x Menu Button
• 1 x PCIe ON/OFF Switch
• 1 x Slow Mode Switch
• 1 x LN2 Mode Switch
• 1 x BIOS Selection Switch
• 1 x Direct Key Button

Аксесоари:

• 3 x ASRock Flexible SLI Bridge Connector кабел (2 x 10 cm, 1 x 14 cm)
• 6 x SATA Data кабел
• 1 x HDD Saver кабел
• 2 x Screws for M.2 Sockets
• 1 x Screw for mini-PCIe Slot

Сертификати:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
