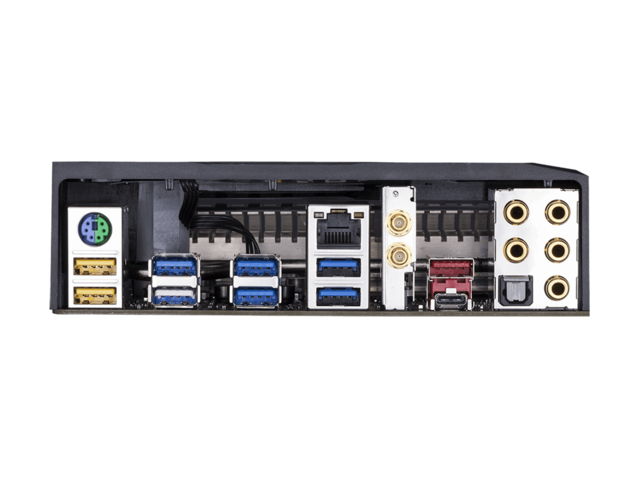

Интерфейси:

• 1 x PS/2 порт за мишка и клавиатура
• 1 x USB Type-C порт с поддръжка на USB 3.1 Gen 2
• 1 x USB 3.1 Gen 2 Type-A (червен)
• 8 x USB 3.1 Gen 1
• 1 x RJ-45
• 2 x MMCX antenna connectors (2T2R)
• 1 x optical S/PDIF Out connector
• 5 x аудио жака (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Слотове за разширение:

• 2 x PCI Express x16 слота, работещи при x16 (PCIEX16_1, PCIEX16_2)
• 2 x PCI Express x16 слота, работещи при x8 (PCIEX8_1, PCIEX8_2)
  (PCIEX16 и PCIEX8 отговарят на стандарта PCI Express 3.0)
• 1 x PCI Express x16 слот, работещ при x4 (PCIEX4)
  (PCIEX4 отговаря на стандарта PCI Express 2.0)

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 1 x digital LED strip header
• 1 x digital LED strip power select jumper
• 2 x RGB (RGBW) LED strip extension cable headers
• 3 x M.2 Socket 3 connectors
• 8 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C™ header with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header
• 1 x power button
• 1 x reset button
• 1 x Clear CMOS button
• 2 x temperature sensor headers
• 1 x Clear CMOS jumper

Съхранение:

• 2 x M.2 конектори (Socket 3, M key, тип 2260/2280/22110 SATA и PCIe x4/x2 SSD), (M2M_32G)(M2Q_32G)
• 1 x M.2 конектор (Socket 3, M key, тип 2242/2260/2280 SATA и PCIe x4/x2 SSD), (M2P_32G)
• 8 x SATA 6Gb/s конектори
• Поддържа RAID 0, RAID 1 и RAID 10
