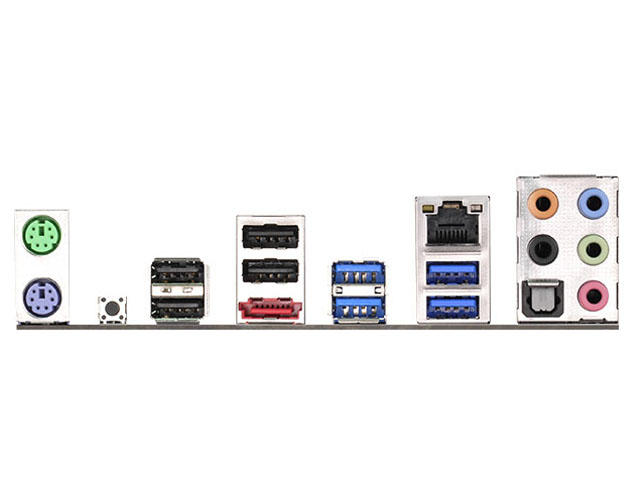

Интерфейси:

•  1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 1 x eSATA
• 1 x Optical SPDIF Out
• 4 x USB 2.0 (Supports ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN с LED индикатор
• 1 x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode)( If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run at x16/x8/x4)
• 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x4 mode) ( If M.2 PCI Express module is installed, PCIE5 slot will be disabled.)
• 1 x PCI Express 2.0 x1 Slot
• Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
• Supports NVIDIA Quad SLI, 3-Way SLI and SLI ( If you install CPU with 28 lanes, 3-Way SLI™ is not supported, To support 3-Way SLI, please install the CPU with 40 lanes)
• 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)

Kонектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x HDD Saver Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector ( необходимо е да ъпдейтнете до последна версия на BIOS,за да ползвате Thunderbolt технология)
• 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Съхранение:

• 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
• 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

* S_SATA3_3 connector is shared with the eSATA port, S_SATA3_2 connector is shared with Ultra M.2 Socket

**RAID is supported on SATA3_0 ~ SATA3_5 ports only.

Памет:

• 8 цокъла DDR4 DIMM, поддържащи до128 GB системна памет
• Поддръжка на модули памет DDR4 3000+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, небуферирана памет

Комплекта съдържа:

• 1 x ASRock SLI_Bridge_2S Card
• 1 x ASRock 3-Way SLI-2S1S Bridge Card
• I/O Shield
• 4 x SATA Data кабел
• 1 x HDD Saver кабел
• 1 x Screw for Ultra M.2 Socket

Сертификати:

•  FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
