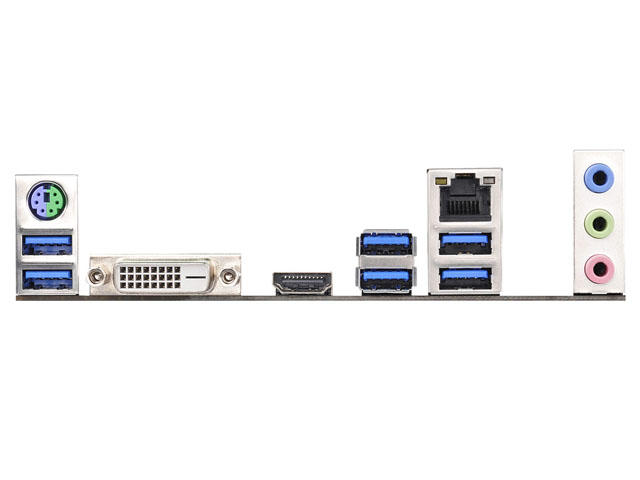

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x DVI-D
• 1 x HDMI
• 6 x USB 3.0
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)( Поддържа NVMe SSD като boot disks)
• 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Kонектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)( ( Всички CPU/Chassis Fan Connectors автоматично откриват дали се ползва 3-pin или4-pin fan)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

(CPU Fan Connector поддържа CPU вентилатора на максимална 1А ( 12W ) мощност на вентилатора)

Съхранение:

•  6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 14 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug ( If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled)
•  1 x Ultra M.2 Socket, supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)(Supports ASRock U.2 KitSupports NVMe SSD as boot disks)

Комплекта съдържа:

• I/O Shield
• 2 x SATA Data кабел
• 1 x Screw for M.2 Socket

Сертификати:

•  FCC, CE, WHQL
•  ErP/EuP ready (ErP/EuP ready power supply is required)
