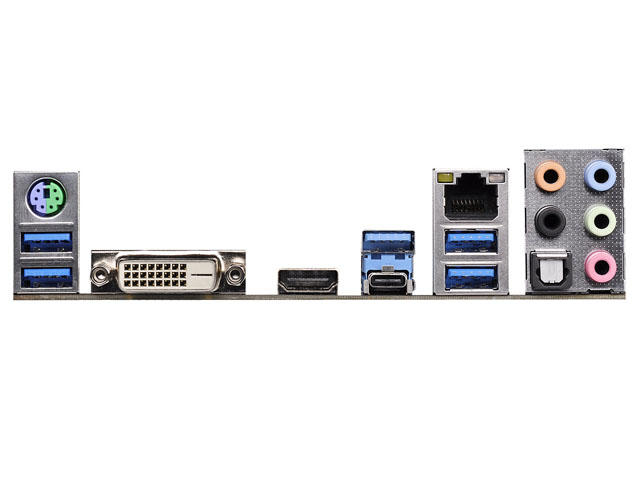

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x DVI-D
• 1 x HDMI
• 1 x Optical SPDIF Out
• 1 x USB 3.1 Type-A (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.1 Type-C (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 (Intel^® Z170) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3/PCIE4: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE4))( Поддържа NVMe SSD като boot disks)
• 1 x PCI Express 3.0 x1 Slot (Flexible PCIe)

( PCIE4 е от chipset PCIE x4 lane)

Kонектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)( CPU_FAN1, CHA_FAN1 и CHA_FAN2 автоматично откриват дали се ползва 3-pin или 4-pin fan .
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

(CPU Fan Connector поддържа CPU вентилатора на максимална 1А ( 12W ) мощност на вентилатора)

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 14 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug (  If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled.)
• 1 x Ultra M.2 Socket, supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)( Supports ASRock U.2 Kit Supports NVMe SSD as boot disks)

Памет:

• 4 цокъла DDR4 DIMM, поддържащи до 64 GB системна памет
• Поддръжка на модули памет DDR4 3466+(OC)/3200(OC)/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, небуферирана памет

*7th Gen Intel CPU поддържа DDR4 до 2400; 6^th Gen Intel CPU поддържа DDR4 до 2133.

Комплекта съдържа:

• 1 x ASRock SLI_Bridge Card

• I/O Shield
• 2 x SATA Data кабел
• 1 x Screw for M.2 Socket

Сертификати:

•  FCC, CE, WHQL
•  ErP/EuP ready (ErP/EuP ready power supply is required)
