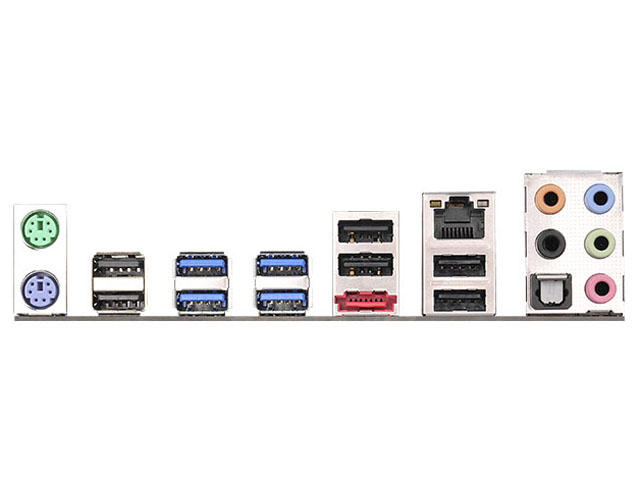

Интерфейси:

• 1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 1 x Optical SPDIF Out
• 6 x USB 2.0 (Поддържа ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 (ASMedia Hub) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x eSATA3
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 3 x PCI Express 2.0 x16 слот(PCIE2/PCIE3 @ x16 mode; PCIE5 @ x4 mode)
• 2 x PCI Express 2.0 x1 слот

Конектори:

• 1 x IR Header
• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 1 x SPDIF Out Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Vertical Type A USB 3.0 (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header by Etron EJ188 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))



Съхранение:

•  5 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug
• 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s) (M.2_SSD (NGFF) Socket 3 is shared with the eSATA3 connector)



Комплекта съдържа:

• 1 x ASRock SLI_Bridge_2S Card
• 4 x SATA Data кабел
• 1 x M.2_SSD (NGFF) Socket 3 Screw

Сертификати:

•  FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
