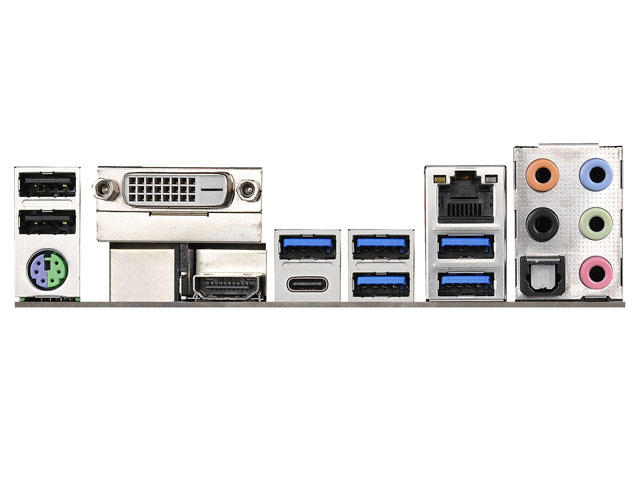

Интерфейси:

• 1 x PS/2 Мишка/ клавиатура
• 1 x DVI-D
• 1 x HDMI
• 1 x Optical SPDIF Out
• 1 x USB 2.0
• 1 x Fatal1ty Mouse (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
• 5 x USB 3.0 Type-A
• 1 x USB 3.0 Type-C
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)(Поддържа NVMe SSD като boot disks)
• 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Kонектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)( CPU_FAN1 и CHA_FAN1 автоматично откриват дали се поплзва 3-pin или 4-pin fan)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

(CPU Fan Connector поддържа CPU вентилатора на максимална 1А ( 12W ) мощност на вентилатора)

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 14 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug
• 2 x SATA Express 10 Gb/s Connectors ( If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled)
• 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)( Supports ASRock U.2 Kit Supports NVMe SSD as boot disks)

Комплекта съдържа:

• I/O Shield
• 4 x SATA Data кабел
• 1 x Screw for M.2 Socket

Сертификати:

•  FCC, CE, WHQL
•  ErP/EuP ready (ErP/EuP ready power supply is required)
