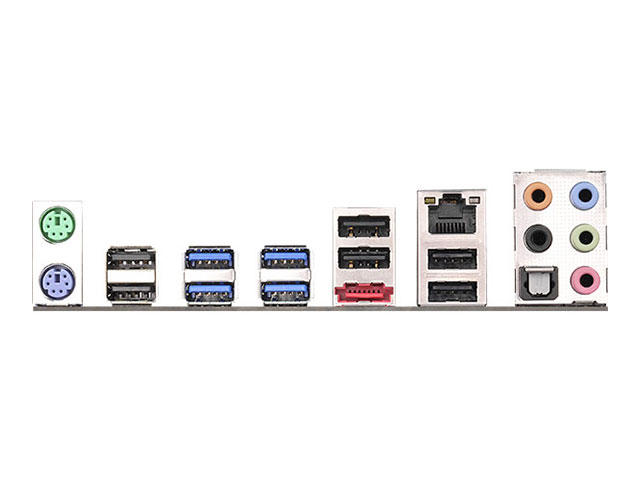

Интерфейси:

• 1x PS/2
• 1x PS/2
• 1x Optical SPDIF Out
• 6x USB 2.0
• 4x USB 3.0
• 1x eSATA3 Connector
• 1x RJ-45
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 5 x SATA3 6.0 Gb/s (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5)

Слотове за разширение:

• 3x PCI Express 2.0 x16 Slots (PCIE2/PCIE3 @ x16 mode; PCIE5 @ x4 mode)
• 2x PCI Express 2.0 x1 Slots
• Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
• Supports NVIDIA Quad SLI and SLI
• 15μ Gold Contact in VGA PCIe Slots (PCIE2/PCIE3)

Конектори:

• 1x IR Header
• 1x COM Port Header
• 1x TPM Header
• 1x Power LED Header
• 2x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
• 1x Power Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1x PCIe Power Connector
• 1x Front Panel Audio Connector
• 1x SPDIF Out Connector
• 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x Vertical Type A USB 3.0 (Supports ESD Protection (ASRock Full Spike Protection))
• 1x USB 3.0 Header by Etron EJ188 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Съхранение:

•  5 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug
• 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s) (M.2_SSD (NGFF) Socket 3 is shared with the eSATA3 connector)

Комплектът включва:

• 1x ASRock SLI_Bridge_2S Card
• 4x SATA кабел
• 1x M.2_SSD (NGFF) Socket 3 Screw
• Support CD

Сертификати: FCC, CE и WHQL, ErP/EuP ready
