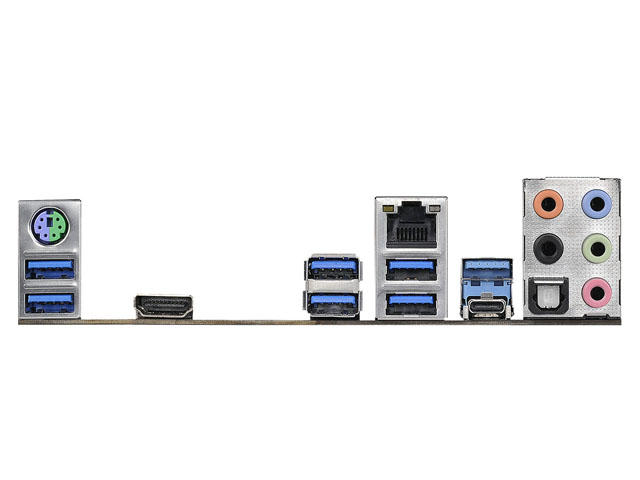

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x HDMI
• 1 x Optical SPDIF Out
• 1 x USB 3.1 Type-A (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.1 Type-C (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
• 6 x USB 3.0 (Intel^® Z170) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))( Supports NVMe SSD as boot disks)
• 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
• Поддържа AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
• Поддържа NVIDIA Quad SLI and SLI

Kонектори:

• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)( ( Всички CPU/шаси конектори на вентилатори автоматично откриват дали се ползва 3-пинов или4-пинов вентилатор)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

(CPU Fan Connector поддържа CPU вентилатора на максимална 1А ( 12W ) мощност на вентилатора)

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug
• 3 x SATA Express 10 Gb/s Connectors( M2_1, SATA3_0, SATA3_1 and SATA_EXP_0 share lanes. If either one of them is in use, the others will be disabled)
• 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) ( Supports NVMe SSD as boot disks , Supports ASRock U.2 Kit)


Комплекта съдържа:

• 1 x ASRock SLI_Bridge_2S Card
•  I/O Shield
• 2 x SATA Data кабел
• 1 x Screw for M.2 Socket



Сертификати:

•  FCC, CE, WHQL
•  ErP/EuP ready (ErP/EuP ready power supply is required)
