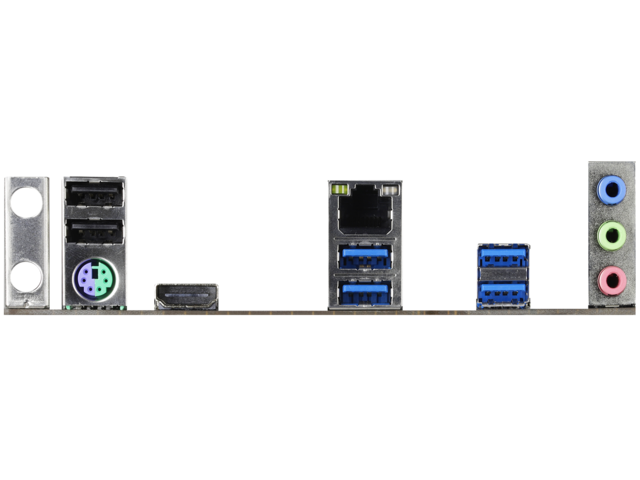

Интерфейси:

• 1 x Antenna Bracket
• 1 x PS/2 комбиниран порт за мишка/клавиатура
• 1 x HDMI
• 2 x USB 2.0 порта (Поддържат ESD Protection)
• 4 x USB 3.2 Gen1 Type-A порта (Поддържат ESD Protection)
• 1 x RJ-45 LAN Port с LED (ACT/LINK LED и SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 2 x PCI Express 3.0 x16 слота (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)
• 2 x PCI Express 3.0 x1 слота
• 1 x M.2 Socket (Key E), поддържа тип 2230 WiFi/BT модул

Конектори:

• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
• 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

Съхранение:

• 6 x SATA3 6.0 Gb/s конектора, поддържат RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 17), NCQ, AHCI и Hot Plug
• 1 x Ultra M.2 Socket (M2_2), поддържа M Key тип 2280/22110 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)

Памет:

• 4 x DDR4 DIMM цокъла, поддържащи до 128GB системна памет
• Архитектура с две канални памети
• 2933/2800/2666/2400/2133 MHz Non-ECC, небуферирана памет
•  Intel Extreme Memory Profile
