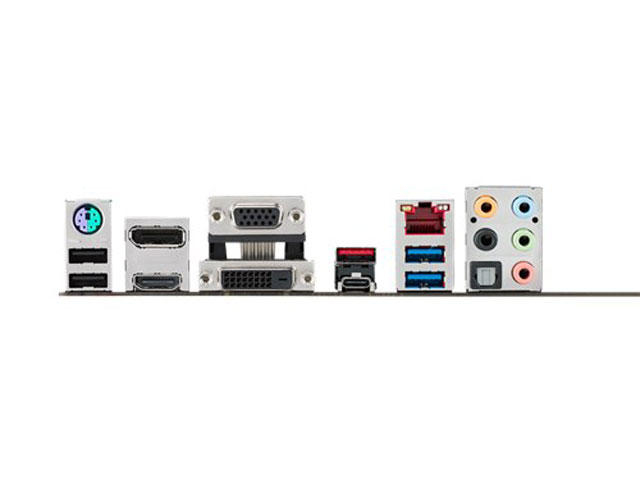

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x DVI-D
• 1 x D-Sub
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45)
• 1 x USB 3.1 Type-C
• 1 x USB 3.1 Type-A
• 2 x USB 3.0
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x16
• 1 x PCIe 3.0/2.0 x16 (x4 mode)
• 4 x PCIe 3.0/2.0 x1

Конектори:

• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Thermal sensor connector(s)
• 1 x CPU OV
• 1 x Clear CMOS jumper(s)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x ROG extension (ROG_EXT) header(s)
• 1 x 14-1 pin TPM connector

Комплектът включва:

• I/O Shield
• 4 x SATA 6Gb/s кабел
• 1 x M.2 Screw Package

Аудио:

SupremeFX 8-Channel High Definition Audio CODEC
- Поддържа : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II
