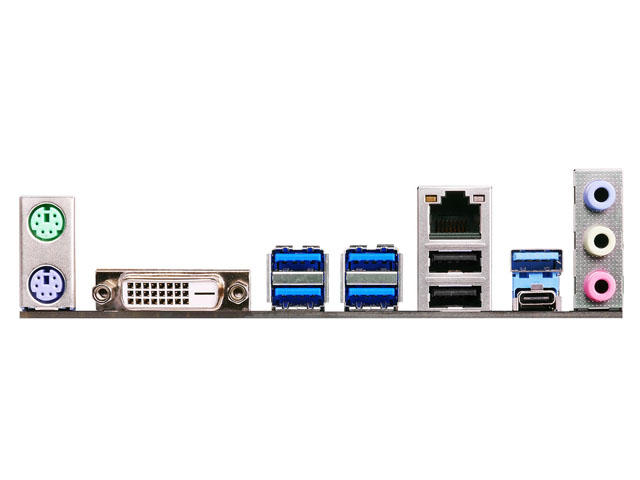

Интерфейси:

•  1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 1 x DVI-D
• 1 x USB 3.1 Type-A (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.1 Type-C (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
• 2 x USB 2.0 (Intel^® B150) (Supports ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 (Intel^® B150) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

•  2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)( Supports NVMe SSD as boot disks )
• 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
• Supports AMD Quad CrossFireX and CrossFireX

Kонектори:

•  1 x TPM Header
• 1 x Power LED and Speaker Header
• 1 x CPU Fan Connector (4-pin)
• 2 x Chassis Fan Connectors (4-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))



Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Комплекта съдържа:

• I/O Shield
• 2 x SATA Data кабел

Сертификати:

•  FCC, CE, WHQL
•  ErP/EuP ready (ErP/EuP ready power supply is required)
