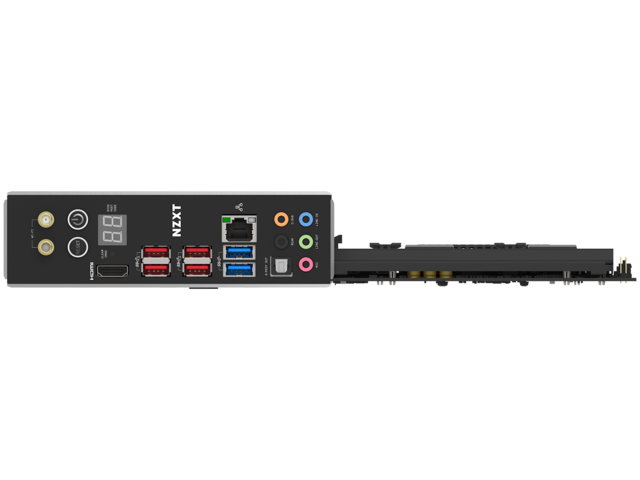

Интерфейси:

• 4x USB 3.1 Gen 2 порта
• 2x USB 3.1 Gen 1 порта
• 1x HDMI 1.4b
• 1x 2x2 Wireless антена
• 1x Clear CMOS бутон
• 1x Power бутон
• 1x Reset бутон
• 1x BIOS post code display
• 1x LAN (RJ45) порт
• 1x Optical S/PDIF Out порт
• 5x аудио жака

Слотове за разширение:

• 2x PCIe 3.0 x16 (x16 или двоен x8)
• 2x PCIe 3.0 x4
• 1x PCIe 3.0 x1

Конектори:

• 1x 24-pin EATX power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin CPU_FAN connector
• 1x 4-pin AIO_PUMP connector
• 6x 4-pin SYS_FAN connectors (Support 0dB mode and up to 6W per channel)
• 3x RGB LED connectors
• 1x Noise sensor
• 3x USB 2.0 header (Up to 6 USB 2.0 ports)
• 1x USB 3.1 Gen1 header (Up to 2 USB 3.1 Gen 1 ports)
• 1x USB 3.1 Gen2 front panel header (For USB Type-C)
• 4x SATA 6Gb/s connectors
• 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x4 & SATA mode)
• 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x4 mode only)
• 1x M.2 Socket 1 with E Key, (For wireless cards, supports CNVio)
• 1x Front panel audio connector
• 1x ROM backup button
• 1x Dual BIOS switch

Съхранение:

• Intel Z390 Chipset
• 1x M.2 тип 2242/2260/2280 (PCIe 3.0 x4 & SATA режим)
• 1x M.2 тип 2242/2260/2280 (PCIe 3.0 x4 режим)
• 4x SATA 6Gb/s порта
• Поддържа RAID 0/1/5/10
• Поддържа Intel Smart Response Technology
• Intel Rapid Storage Technology 15
• Intel Optane Memory Ready

Памет:

• 4x DIMM, Max. 64GB, DDR4
• Non-ECC, Un-buffered Memory
• Двуканала архитектура на паметта
• Поддържа Intel Extreme Memory Profile (XMP)

WiFi и Bluetooth:

• Intel Dual Band Wireless-AC 9560
• Wi-Fi 802.11 a/b/g/n/ac
• Supports dual band frequency 2.4/5GHz
• Supports MU-MIMO
• Bluetooth V5
