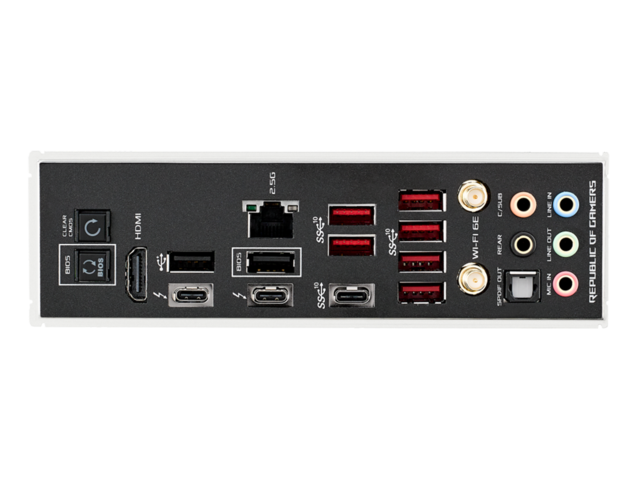

Интерфейс:

• 2 x Thunderbolt™ 4 USB Type-C® ports

• 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)

• 2 x USB 2.0 ports (2 x Type-A)

• 1 x HDMI® port

• 1 x Wi-Fi Module

• 1 x Intel® 2.5Gb Ethernet port

• 5 x Gold-plated audio jacks

• 1 x Optical S/PDIF out port

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

Wireless & Bluetooth:

• Intel® Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Поддържа честотна лента 2.4/5/6GHz*
• Bluetooth v5.2

Памет:

• 4 x DIMM, макс. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non -ECC, небуферирана памет*
• Двуканална архитектура на паметта
• Поддържа Intel® Extreme Memory Profile (XMP)

Слотове за разширение:

• Intel® 12th Gen Processors:
  • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)*

• Intel® Z690 Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)

Съхранение:

• Общо поддържа 5 x M.2 слота и 6 x SATA 6Gb/s порта
• Поддържа NVMe RAID 0/1/5, SATA RAID 0/1/5/10

Конектори:

• Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

• Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

• Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

• USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Start button

1 x ReTry button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header
