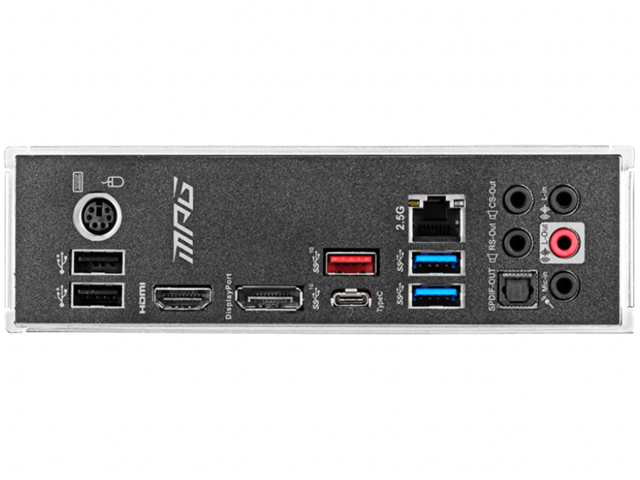

Интерфейси:

• 1 х PS/2 комбиниран порт за мишка и клавиатура
• 1 х LAN
• 1 x HDMI Port
• 1 x DisplayPort
• 2 х USB 2.0
• 2 х USB 3.2 Gen 1 5Gbps (Type-A)
• 1 x USB 3.2 Gen 2 10Gbps (Type-A)
• 1 x USB 3.2 Gen 2 10Gbps (Type-C)
• 1 x Optical S/PDIF OUT
• 5 х HD аудио конектори

Слотове за разширение:

• 1x PCIe 3.0 x16 слот (from CPU)
• 1x PCIe 3.0 x16 слот (from PCH, поддържа x4 режим)
• 3x PCIe x1 слота (from PCH)

Конектори:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water pump connector
• 6x 4-pin system fan connectors
• 1x front panel audio connector
• 2x system panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x serial port connector
• 1x TPM module connector
• 1x TBT connector

Съхранение:

• 6 x SATA 6Gb/s порта
• 2 x M.2 слот (Key M)
  • M2_1 поддържа до PCIe 3.0 x4 и SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 дискови устройства
  • M2_2 поддържа PCIe 3.0 x4 и SATA 6Gb/s, 2242/ 2260/ 2280 дискови устройства
  • Intel Optane Memory Ready

Памет:

• 4 x DDR4 слотове за памет, поддържащи до  128GB
  Поддържа 1R 2133/2666/2933 MHz

  • 1DPC 1R Max speed up to 5000+ MHz
  • 1DPC 2R Max speed up to 4500+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Поддържа двуканален режим
• Поддържа non-ECC, небуферирана памет
• Поддържа Intel Extreme Memory Profile (XMP)
