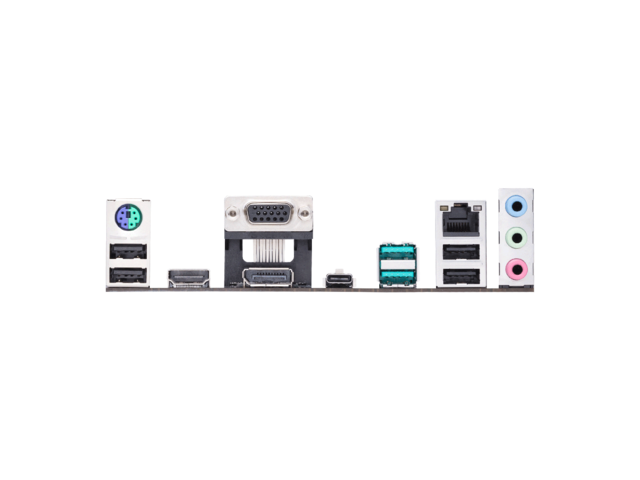

Интерфейси:
- 1 x Display Port
- 1 x HDMI
- 1 x D-Sub
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
- 1 x Intel® I219-V 1Gb Ethernet
- 4 x USB 2.0 ports (4 x Type-A)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1x USB 3.2 Gen 1 port (1 x USB Type-C®)
Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)
Конектори:
Fan and cooling-related
- 1 x 4-pin CPU Fan header
- 3 x 4-pin Chassis Fan headers
Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
Storage related
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Други:
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS jumper
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF out header
- 1 x 20-3pin System Panel header with Chassis intrude function
- 1 x SPI TPM header (14-1 pin)
- 1 x M.2 slot (key E)
- 1 x Thunderbolt 4 header
Съхранение:
- Поддържа 2 x M.2 slots and 6 x SATA 6Gb/s
Intel® 11th Gen Processors
- - M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )
- - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset
- - M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)
- - 6 x SATA 6Gb/s ports
Слотове за разширение:
- 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th &10th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot*
- - Intel® 11th processors support PCIe 4.0 x16
- - Intel®10th processors support PCIe 3.0 x16
Intel® B560 Chipset
- 1 x PCIe 3.0 x16 slot (supports x4 mode)*
- 2 x PCIe 3.0 x1 slots
Памет:
- Максимален размер на паметта: 128GB 4600 (OC) / 4400 (OC) / 4266 (OC) / 4000 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200 (OC) / 2933/2800/2666 / 2400/2133 MHz Non-ECC, не-буферирана памет
- Двуканална архитектура на паметта
- Поддържа Intel® Extreme Memory Profile (XMP)
- ASUS OptiMem
