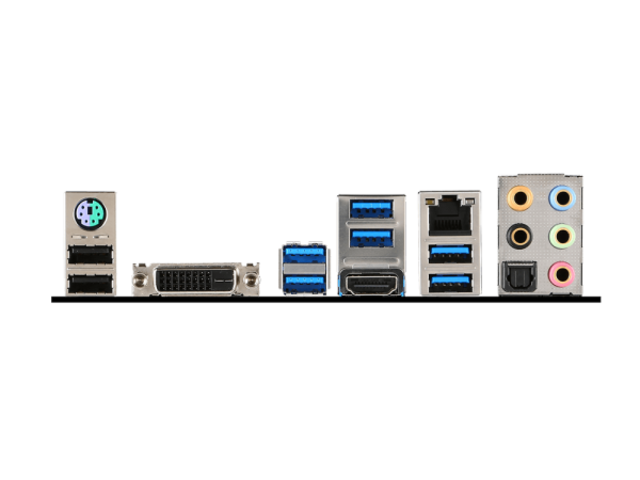

Интерфейси:

• 1x PS/2 клавиатура/мишка
• 1x LAN (RJ45)
• 2x USB 2.0
• 4x USB 3.1 (Gen 1)
• 2x USB 3.1 (Gen 2)
• 1x Optical S/PDIF OUT connector
• 5 x OFC audio jacks
• 1x HDMI
• 1x DVI-D

Слотове за разширение:

• 3 x PCIe 3.0 x16 slots (support x16/x0/x4 or x8/x8/x4 modes)
• 3 x PCIe 3.0 x1 slots
• 1 x PCI slot

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors (2 ports reserved for SATA Express port)
• 1 x SATA Express connector
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x 4-pin CPU fan connectors
• 3 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
