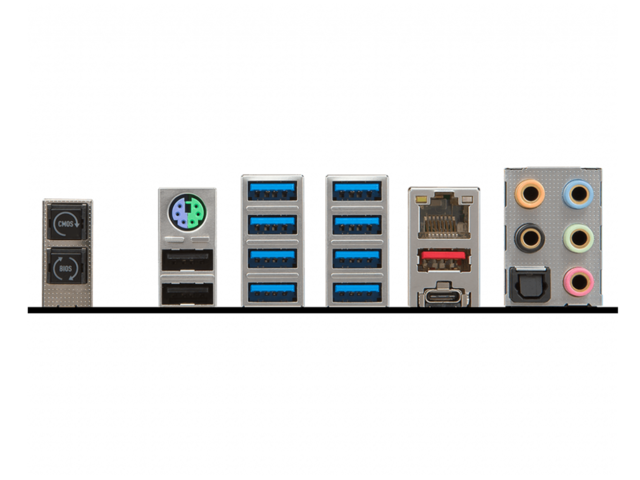

Интерфейси:

• 1 x Clear CMOS бутон
• 1 x PS/2 за мишка / калвиатура
• 2 x USB 2.0 Type-A
• 8 x USB 3.1 Gen1 Type-A
• 1 x LAN (RJ45)
• 1 x USB 3.1 Gen2 Type-C
• 5 x аудио жака
• 1 x Optical S/PDIF OUT конектор
• 1 x Flash BIOS Button

Слотове за разширение:

• 2 x PCIe 3.0 x16 слота
• 2 x PCIe 3.0 x8 слота
• 2 x PCIe 2.0 x1 слота

Конектори:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connector
• 1 x 6-pin ATX 12V power connector¹
• 8 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 1 x USB 3.1 Gen2 Type-C port
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 4 x 4-pin system fan connectors
• 2 x Front panel connectors
• 1 x Front panel audio connector
• 2 x RGB LED connector
• 1 x TPM module connector
• 1 x LED demo connector
• 1 x Rest Button
• 1 x Power Button
• 1 x OC Button
• 1 x Chassis Intrusion connector
• 1 x clear CMOS header

Съхранение:

• AMD X399 чипсет
  8 x SATA 6Gb/s ports
• AMD RYZEN THREADRIPPER серии процесори
  3 x M.2 slots (Key M)

1. Поддържа до PCIe 3.0 x4 и SATA 6Gb/s
2. M2_1, M2_3 слот поддържа 2242/ 2260 /2280 дискови устройства
3. M2_2 слот поддържа 2242/ 2260 /2280/ 22110 дискови устройства
