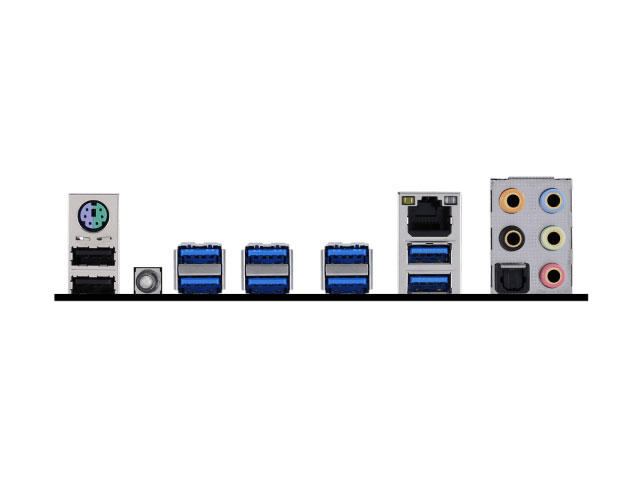

Интерфейси:

• 1x PS/2 Клавиатура/мишка
• 2x USB 2.0
• 8x USB 3.0
• 1x Clear CMOS бутон
• 1x LAN (RJ-45)
• 1x Optical S/PDIF OUT connector
• 5x OFC адио жакове
• 10x SATA 6Gb/s - SATA1~6 поддържа RAID 0/1/5/10; SATA7~10 се поддържа само в IDE mode и AHCI mode
• 1 x SATA Express port
• 1 x M.2 port

Слотове за разширение:

• 4x PCIe 3.0 x16 slots, support up to 3-way mode

• 2x PCIe 2.0 x1 slots

Конектори:

• 1x 24-pin AT x main power connector
• 1x 8-pin AT x 12V power connector
• 10x SATA 6Gb/s connectors
• 1x SATA E xpress connector
• 1x M.2 connector
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2x USB 3.0 connectors (supports additional 4 USB 3.0 ports)
• 2x 4-pin CPU fan connectors
• 3x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x Slow mode booting jumper
• 1x Power button
• 1x Reset button
• 1x OC Genie button
• 1x Multi-BIOS switch
