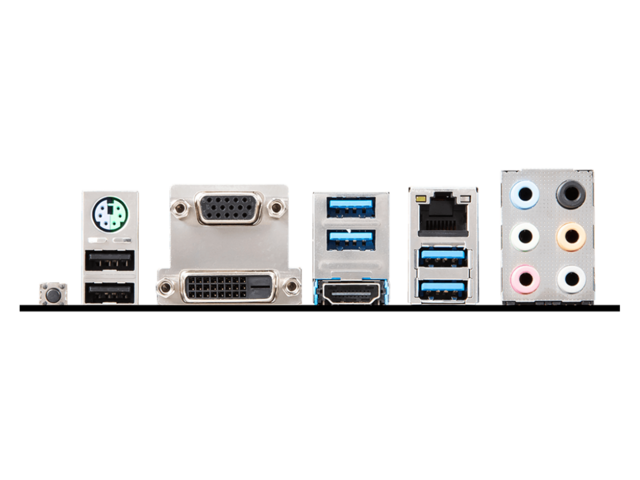

Интерфейси:

• 1 x BIOS FlashBack+
• 1 x PS/2
• 1 x VGA
• 2 x USB 3.1 Gen1
• 1 x LAN
• 6 x HD Audio Connectors
• 2 x USB 2.0
• 1 x DVI-D
• 1x HDMI
• 2 x USB 3.1 Gen2

Слотове за разширение:

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x 5050 RGB LED strip 12V connector

Съхранение:

• AMD B450 Chipset

  • 4 x SATA 6Gb/s порта



• AMD CPU

  • 2 x SATA 6Gb/s порта
  • 1 x M.2 слот (Key M)
    • Поддържа PCIe 3.0 x4 (AMD^® Ryzen 1st и 2nd Generation/ Ryzen™ с Radeon™ Vega Graphics) или PCIe 3.0 x2 (AMD^® Athlon™ с Radeon™ Vega Graphics) и SATA 6Gb/s 2242/ 2260 /2280/ 22110 дискови устройства
