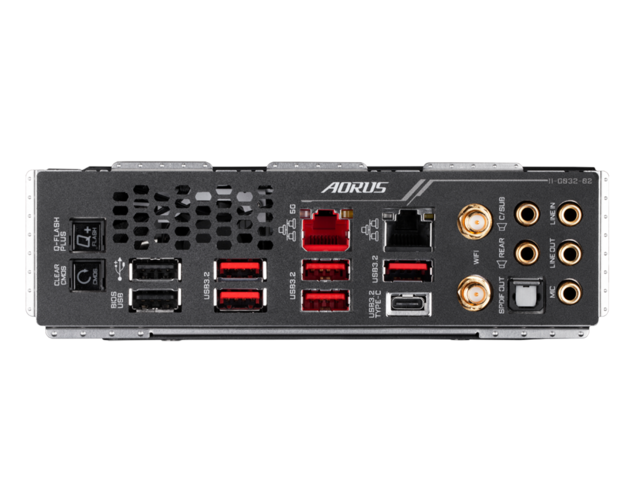

Интерфейси:

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 2 x SMA antenna connectors (2T2R)
• 1 x USB Type-C™ порт, поддържа USB 3.1 Gen 2
• 5 x USB 3.2 Gen 2 Type-A порта (червени)
• 2 x USB 2.0/1.1 порта
• 2 x RJ-45 ports
• 1 x optical S/PDIF Out connector
• 5 x аудио жака

Слотове за разширение:

• 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
• 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
• 1 x PCI Express x1 slot

Конектори:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 2 x system fan headers
• 4 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 3 x M.2 Socket 3 connectors
• 8 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x GIGABYTE add-in card connector
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x power button
• 1 x reset button
• 2 x BIOS switches
• 2 x temperature sensor headers
• 1 x Clear CMOS jumper
• Voltage Measurement Points

Съхранение:

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
• 8 x SATA 6Gb/s connectors
• поддържа Raid 0, 1, 10
