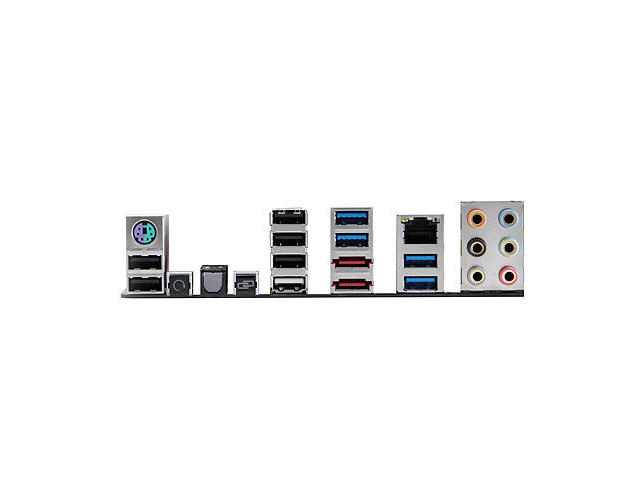

Интерфейси:

• 1x PS/2 клавиатура/мишка комбиниран
• 2x eSATA 6Gb/s

• Поддържа Raid 0, 1, 5, 10
• 1x RJ-45

• 4x USB 3.0

• 6x USB 2.0 (one port can be switched to ROG Connect)

• 1x S/PDIF изход

• 6x аудио жакове

• 1x Clear CMOS бутон

• 1x ROG Connect On/ Off switch(es)

Слотове за разширение:

• 4x PCIe 3.0/2.0 x16 (x16; x16/x16; x16/x8/x16 and x16/x8/x8/x8, red)
• 2x PCIe 2.0 x1
• Поддържа NVIDIA Quad-GPU SLI технология
• Поддържа AMD Quad-GPU CrossFireX технология

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 ports
• 3x USB 2.0 connectors supports additional 6 USB 2.0 ports
• 4x SATA 6Gb/s connectors
• 4x SATA 3Gb/s connectors
• 2x CPU Fan connectors
• 3x Chassis Fan connectors
• 3x Optional Fan connectors
• 1x S/PDIF out header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x Front panel audio connector (AAFP)
• 1x System panel
• 1x Slow Mode switch
• 8x ProbeIt Measurement Points
• 3x Thermal sensor connectors
• 1x EZ Plug connector (4-pin Molex power connector)
• 1x Power-on button
• 1x Reset button
• 1x LN2 Mode switch
• 1x Go Button
