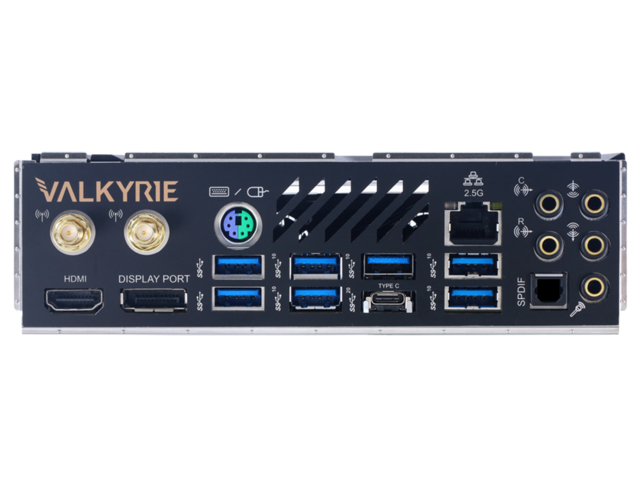

Интерфейс:

• 1 x HDMI 2.0
• 1 x DisplayPort 1.4
• 1 x USB 3.2 (Gen2x2) Type-C
• 5 x USB 3.2 (Gen2)
• 2 x USB 3.2 (Gen1)
• 1 x 2.5 GbE LAN
• 5 x Audio Jack
• 2 x WIFI порт за антена (Wi-Fi картата не е включена)
• 1 x PS/2 Keyboard/ Mouse Port
• 1 x SPDIF_Out

Памет:

• Поддържа 4-DIMM макс. до 128 GB Memory
• Двуканална DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133

• Всеки DIMM модул поддържа non-ECC 4/8/16/ 32GB DDR4 модул

Съхранение:

• Поддържа 3x M.2 цокъла и 6x SATA III (6Gb/s) портове

• 6x SATA III (6Gb/s) конектор: Поддържа AHCI, RAID 0, 1, 5, 10 и Intel Rapid Storage Technology

Слотове за разширение:

• 1 x PCIe 4.0 x 16 Slot (x16 or x8 mode)

• 1 x PCIe 4.0 x 16 Slot (x8 mode)

• 1 x PCIe 3.0 x 16 Slot (x4 mode)

Конектори:

• 6 x SATA III Connectors (6Gb/s)

• 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi

• 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

• 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

• 1 x USB 3.2 (Gen2x2) Type-C Port (each header supports 1 USB 3.2 (Gen2x2) port)

• 2 x 8-Pin Power Connectors

• 1 x 24-Pin Power Connector

• 1 x CPU Fan Connector

• 1 x CPU water cooling connector (CPU_OPT)

• 3 x System Fan Connectors

• 2 x MOSFET Fan Connectors

• 1 x Front Panel Header

• 1 x Front Audio Header

• 1 x Internal Stereo Speaker Header

• 1 x Clear CMOS Switch Button

• 1 x Power Switch Button

• 1 x Reset Switch Button

• 1 x COM Port Header

• 1 x TPM Header

• 1 x Thunderbolt 3 Header

• 2 x LED Header (5V)

• 1 x LED Header (12V)

• 1 x IO LED Header

• 1 x SB LED Header
