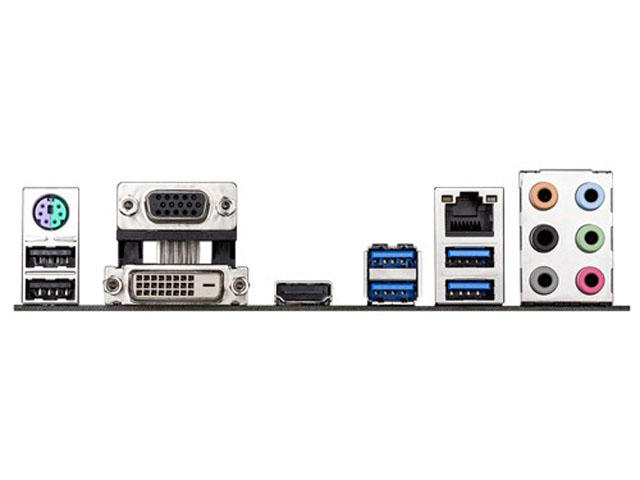

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45)
• 4 x USB 3.0
• 2 x USB 2.0
• 6 x Audio jack(s)

Слотове за разширение:

• 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
• 3 x PCIe 2.0 x1
• 2 x PCI

Конектори:

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3
• 1 x TPM header
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)

Комплектът включва:

• I/O Shield
• 2 x SATA 6Gb/s кабел
