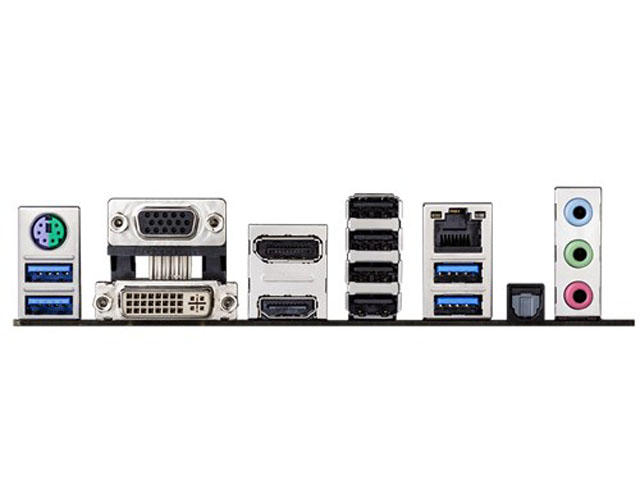

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x DVI-D
• 1 x D-Sub
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45)
• 4 x USB 3.0
• 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 3 x Audio jack(s)
• 2 x Wi-Fi antenna port(s)

Слотове за разширение:

Конектори:

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 for M Key, type 2260/2280 devices
• 1 x TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector)
• 1 x MemOK! button(s)
• 1 x Clear CMOS jumper(s)

Съхранение:

• 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
• 4 x SATA 6Gb/s port(s), gray
• Поддържа Raid 0, 1, 5, 10
• Поддържа Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology( функцията ще работи в зависимост от инсталирания CPU)


Wireless Data Network:

Комплектът включва:

• ASUS Q-Shield
• 4 x SATA 6Gb/s кабел
• 1 x ASUS 2T2R dual band Wi-Fi подвижна антена (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x Q-connector(s) (1 in 1)
