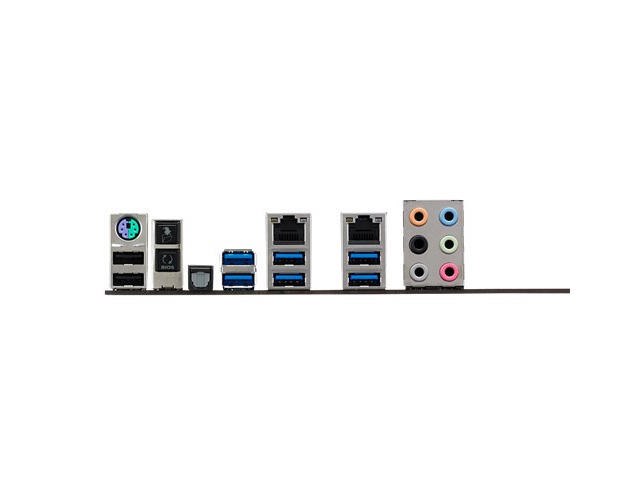

Интерфейси:

• 1 x PS/2 комбиниран порт за мишка и клавиатура
• 2 x LAN (RJ45)
• 6 x USB 3.1 Gen 1 (син)
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 1 x USB BIOS Flashback Button(s)
• 1 x Q-Code Logger button
• 1 x 8-channel Audio I/O

Слотове за разширение:

• 4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8)
• 2 x PCIe 3.0/2.0 x16 (dual x16)
• 1 x PCIe 3.0/2.0 x16 (dual x8)

Конектори:

• 1 x AAFP connector
• 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 2 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3
• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 8 x SATA 6Gb/s connector(s)
• 2 x CPU Fan connector(s) (2 x 4 -pin)
• 7 x Chassis Fan connector(s) (7 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 2 x 8-pin ATX 12V Power connector(s)
• 1 x RAID key header(s)
• 1 x VGA connector(s)
• 1 x AUX panel header(s)
• 1 x SMBus header(s)
• 1 x System panel(s)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Clear CMOS button(s)
• 1 x Dr.Power switch(es)
• 1 x Serial Port header
• 1 x ASMB8-iKVM connector
• 1 x 6-pin EATX 12V_3 Power connector

Съхранение:

Intel C612 чипсет:

• 4 x SATA 6Gb/s порта, сиви
• 4 x SATA 6Gb/s порта, черни
• 1 x SATA Express порт, сив
• 1 x M.2 Socket 3
• Поддържа Raid 0, 1, 5, 10

ASMedia SATA Express controller :

• 1 x SATA Express порт, сив, съвместим с 2 x SATA 6.0 Gb/s порта

Памет:

• 8 x DIMM, Max. 512GB, DDR4 1866*/2400/2133/1600/1333 MHz RDIMM, LR-DIMM Memory
• Quad Channel Memory Architecture

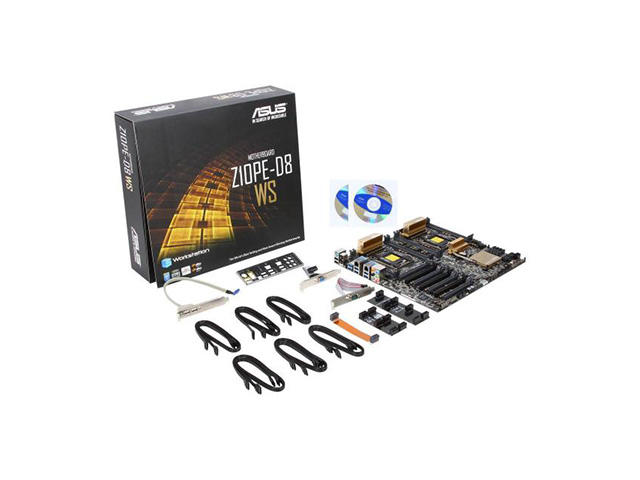

Аксесоари:

• I/O Shield
• 1 x COM port cable(s)
• 12 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD
• 1 x 3-Way SLI bridge(s)
• 1 x 4-Way SLI bridge(s)
• 1 x SLI bridge(s)
• 1 x 2-port USB 2.0 module(s)
• 1 x VGA bracket(s)
• 1 x ASWM Enterprise SDVD
