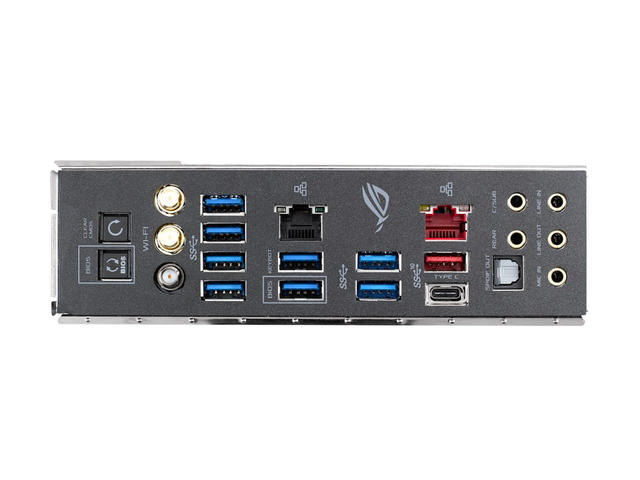

Интерфейси:

• 1 x LAN (RJ45) port(s)
• 2 x USB 3.1 Gen 2
• 8 x USB 3.1 Gen 1
• 1 x Optical S/PDIF out
• 1 x Clear CMOS button(s)
• 1 x USB BIOS Flashback Button(s)
• 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad и Bluetooth v4.1)
• 5 x LED-illuminated аудио жака
• 1 x Aquantia AQC-107 10G LAN port

Wi-Fi

• Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad
• поддържа двубандова честота 2.4/5 GHz

• до 4600Mbps скорост на трансфер


Слотове за разширение:

• 4 x PCIe 3.0 x16 (x16, x16/x16, x16/x0/x16/x8, or x16/x8/x8/x8 mode with 44-LANE CPU; x16, x16/x8 orx8/x8/x8 mode with 28-LANE CPU)
• 1 x PCIe 3.0 x4

Конектори:

• 1 x W_PUMP+ 1
• 1 x W_PUMP+ 2
• 1 x WB_SENSOR
• 1 x Aura Addressable Strip Header(s)
• 1 x U.2 port
• 1 x Aura RGB Strip Headers
• 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x TPM connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x VROC_HW_Key
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x H_AMP fan connector
• 1 x Thunderbolt header(s)
• 1 x 8-pin EATX 12 V Power connector
• 1 x 4-pin EATX 12 V_1 Power connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x Slow Mode switch(es)
• 1 x ProbeIt Measurement Points
• 1 x BIOS Switch button(s)
• 1 x LN2 Mode jumper(s)
• 1 x ROG extension (ROG_EXT) header(s)
• 1 x Safe Boot button
• 1 x ReTry button
• 1 x System panel connector
• 1 x PCIe x16 lane switch
• 2 x T_Sensor Connector
• 1 x W_IN header
• 1 x W_OUT header
• 1 x W_FLOW header
• 1 x Start button
• 1 x USB 3.1 Gen 2 front panel connector

Съхранение:

• Intel Corе X-series Processors:

1. 1 x ROG DIMM.2 Module поддържа (CPU_DIMM.2), M.2 X4 с M Key дизайн, тип 2230/2242/2260/2280/22110 поддържани дискови устройства (Поддържа само PCIE SSD)
2. 1 x ROG DIMM.2 Module поддържа (PCH_DIMM.2), M.2 X4 с M Key дизайн, тип 2230/2242/2260/2280/22110 поддържани дисково устройства ((Поддържа само PCIE SSD)
3. 1 x U.2 port, поддържа PCIe 3.0 x4 NVM Express storage

Памет:

• 8 x DIMM, Max. 128GB, DDR4
• 4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, небуферирана памет
