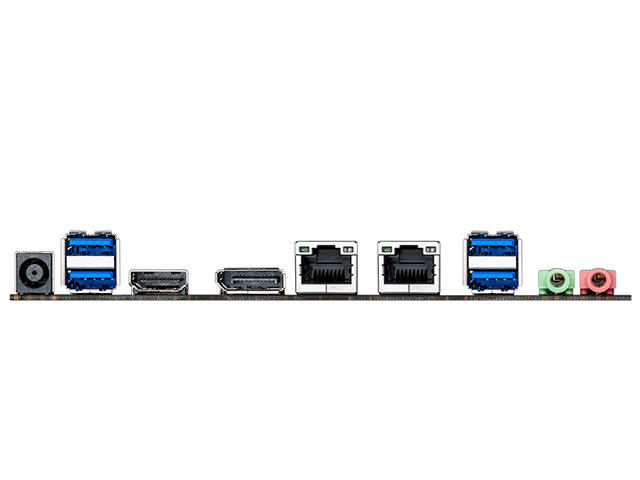

Интерфейси:

• 1x DisplayPort
• 1x HDMI
• 2x RJ-45
• 6x USB 3.0
• 5x USB 2.0
• 4x SATA 6Gb
• 1x mini-SATA 6Gb
• Поддържа Raid 0, 1, 5, 10
• 2x аудио жакове

• 1x DC power connector

Слотове за разширение:

• 1x PCIe 3.0 x4 (black)

• 1x mini-PCIe 2.0 x1 (full-length, black) *2

• 1x mini-PCIe 2.0 x1 (half-length, black)

Конектори:

• 1x USB 3.0 connector supports additional 2 USB 3.0 ports

• 3x USB 2.0 connectors supports additional 5 USB 2.0 ports

• 1x COM port(s) connector

• 4x SATA 6Gb/s connectors

• 1x SATA power connector

• 1x mSATA connector

• 1x CPU Fan connector

• 1x Chassis Fan connector

• 1x Front panel audio connector (AAFP)

• 1x System panel

• 1x Chassis Intrusion connector

• 1x Clear CMOS jumper

• 1x eDP/LVDS switch jumper

• 1x DIS ME jumper

• 1x 2-pin internal DC power connector

• 1x Stereo speaker connector

• 1x DMIC header

• 1x Custom solutions header

• 1x Backlight inverter voltage selection header

• 1x FPD brightness header

• 1x Panel voltage selection header

• 1x Panel off header

• 1x eDP connector

• 1x LVDS connector

Поддържа HDMI с максимална резолюция: 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

Поддържа DisplayPort с максимална резолюция: 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
