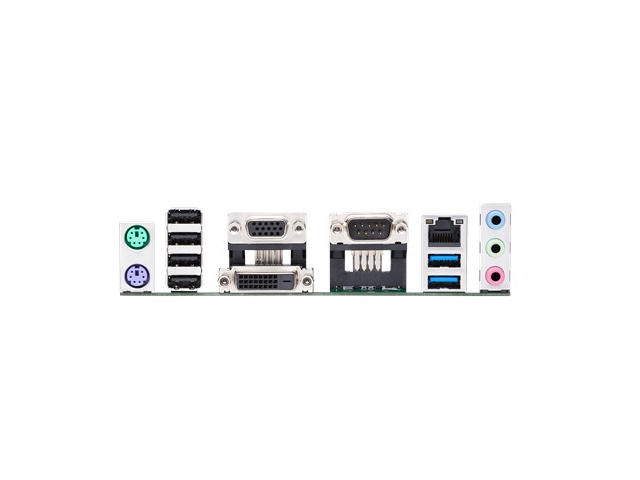

Интерфейси:

• 1 x PS/2 порт за клавиатура (лилав)
• 1 x PS/2 порт за мишка (зелен)
• 1 x DVI-D
• 1 x D-Sub
• 1 x LAN (RJ45)
• 2 x USB 3.1 Gen 1
• 4 x USB 2.0
• 3 x аудио жака

Слотове за разширение:

Конектори:

• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode)
• 1 x LPT header
• 2 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Chassis Intrusion connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x 14-1 pin TPM connector
• 1 x LPC Debug header
• 1 x Speaker connector

Съхранение:

• 1 x M.2 Socket 3, с M Key, тип 2260/2280 поддържани дискови устройства (SATA & PCIE режим)
• 4 x SATA 6Gb/s port(s)
