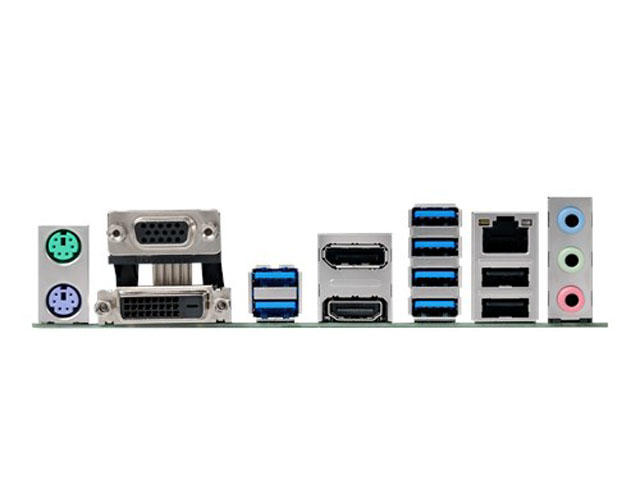

Интерфейси:

• 1 x PS/2 за мишка
• 1 x PS/2 за клавиатура
• 1 x DVI-D
• 1 x D-Sub
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) порт
• 6 x USB 3.0
• 2 x USB 2.0
• 3 x аудио жака

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x16


• 2 x PCIe 3.0/2.0 x1
• 1 x PCI

Конектори:

• 1 x MONO out header
• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
• 1 x LPT header
• 2 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)
• 1 x Chassis Intrusion connector(s)
• 1 x LPC Debug header

Съхранение:

Intel Q270 чипсет:

• 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s порта
• Поддържа Raid 0, 1, 5, 10
• Intel Optane Memory Ready ( поддържа се само с 7-ма генерация Intel процесори)

• I/O Shield
• 2 x SATA 6Gb/s кабели
• 1 x M.2 винтове пакет
