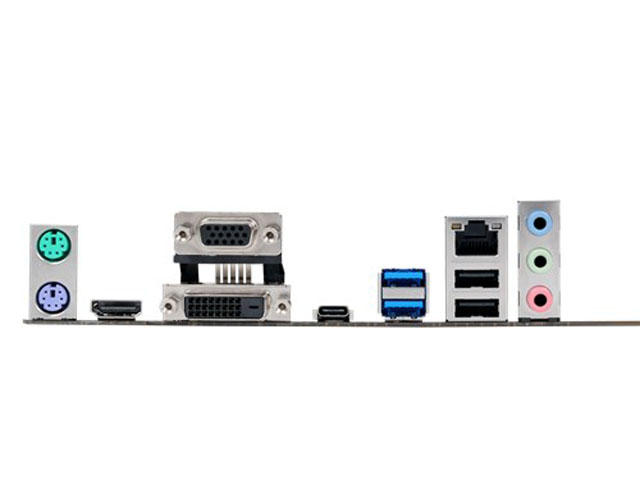

Интерфейси:

• 1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
• 2 x USB 3.0 (blue) Type-A
• 2 x USB 2.0
• 3 x Audio jack(s)

Слотове за разширение:

• 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
• 2 x PCIe 3.0/2.0 x1

Конектори:

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x TPM header
• 1 x LPT header
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Chassis Intrusion connector(s)
• 1 x Clear CMOS jumper(s)

Съхранение:

• 6 x SATA 6Gb/s port(s)

Комплектът включва:

• I/O Shield

• 2 x SATA 6Gb/s кабел
