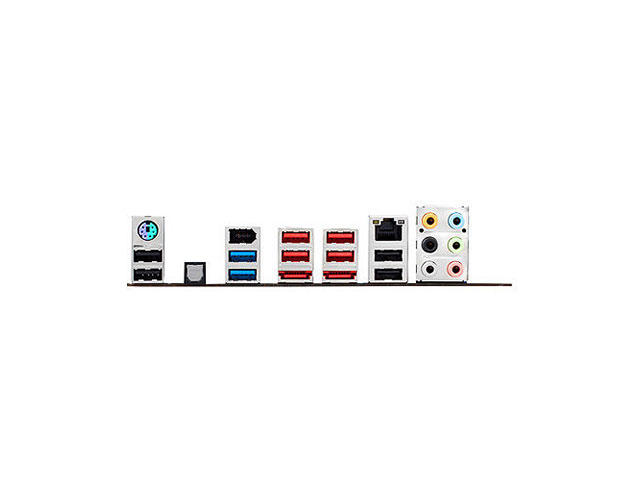

Интерфейси:

• 1x PS/2 комбиниран за мишка/клавиатура
• 2x eSATA 3Gb/s
• 1x IEEE 1394a
• 1x LAN (RJ45)
• 2x USB 3.0
• 8x USB 2.0
• 1x Optical S/PDIF out
• 6x аудио жакове
• 6x SATA 6Gb/s - поддържа Raid 0, 1, 5, 10

Слотове за разширение:

• 1x PCIe 2.0 x16 (blue)
• 1x PCIe 2.0 x16 (x4 mode, black)
• 2x PCIe 2.0 x1
• 2x PCI

Конектори:

• 1x USB 3.0 connector support additional 2 USB 3.0 port (19-pin)
• 3x USB 2.0 connectors supports additional 6 USB 2.0 ports
• 1x COM port(s) connector
• 6x SATA 6Gb/s connectors
• 1x IEEE 1394a connector
• 1x CPU Fan connector (4 -pin)
• 2x Chassis Fan connectors (1 x 4 -pin, 1 x 3 -pin)
• 1x Power Fan connector (1 x 3 -pin)
• 1x S/PDIF out header
• 1x 24-pin EATX Power connector
• 1x 8-pin ATX 12V Power connector
• 1x Front panel audio connector (AAFP)
• 1x System panel(s) (Q-Connector)
• 1x MemOK! button
• 1x TPU switch(es)
• 1x EPU switch(es)
• 1x Clear CMOS jumper

В комплекта са включени:

• Упътване
• 3x SATA 6Gb/s кабел
• 1x Q-connector (2 in 1)
