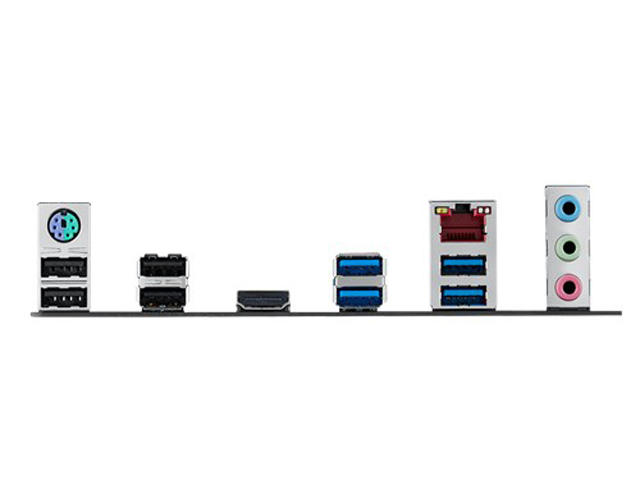

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.0
• 4 x USB 2.0
• 3 x Audio jack(s)

Слотове за разширение:

Конектори:

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x 14-1 pin TPM connector

Съхранение:

• 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE modе) (когато М.2 Socket 3 работи в режим SATA , SATA порт 1 ще бъде деактивиран)

• 6 x SATA 6Gb/s connector(s)

Комплектът включва:

• ASUS Q-Shield

• 2 x SATA 6Gb/s кабел
• 1 x M.2 Screw Package
