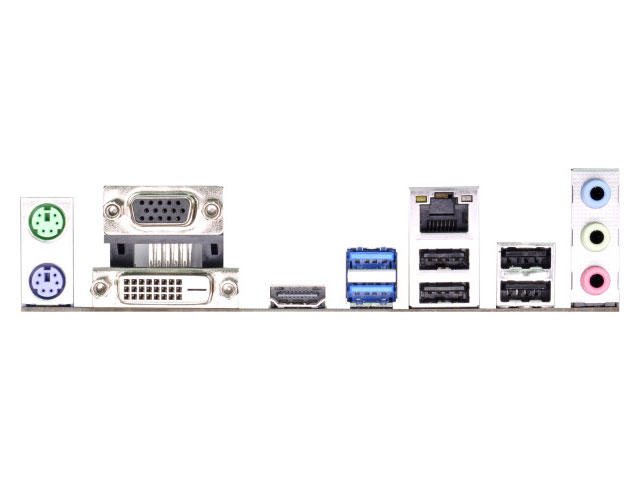

Интерфейси:

• 1x PS/2 порт за мишка
• 1x PS/2 порт за клавиатура
• 1x D-Sub
• 1x DVI-D
• 1x HDMI
• 4x USB 2.0
• 2x USB 3.0
• 1x RJ-45 LAN
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 1x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
• 1x PCI Express 2.0 x1 Slot
• 1x PCI Slot
• Поддържа AMD Dual Graphics

Конектори:

• 1x Print Port Header
• 1x COM Port Header
• 1x Chassis Intrusion Header
• 1x TPM Header
• 1x CPU Fan Connector (4-pin)
• 1x Chassis Fan Connector (4-pin)
• 1x Power Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x 4 pin 12V Power Connector
• 1x Front Panel Audio Connector
• 2x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1x USB 3.0 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.0 ports)

Съхранение:

•  8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug

Комплектът включва:

• Упътване за бързо стартиране
• 2x SATA Data кабели

Сертификати: FCC, CE и WHQL
