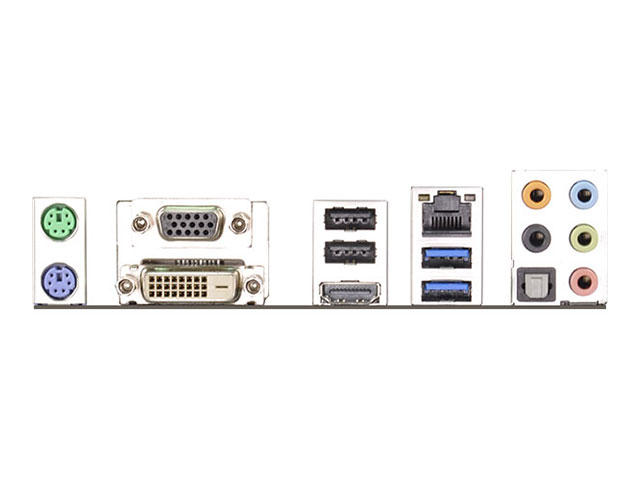

Интерфейси:

• 1x PS/2 мишка
• 1x PS/2 клавиатура
• 1x D-Sub
• 1x DVI-D
• 1x HDMI
• 1x Optical SPDIF изход
• 2x USB 2.0 (Supports ESD Protection (ASRock Full Spike Protection))
• 2x USB 3.0 (Supports ESD Protection (ASRock Full Spike Protection))
• 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 2x SATA2 3.0 Gb/s
• 2x SATA3 6.0 Gb/s

Слотове за разширение:

• 1x PCI Express 2.0 x1 Slot
• 1x mini-PCI Express Slot

Конектори:

• 1x Print Port Header
• 1x COM Port Header
• 1x TPM Header
• 1x Chassis Intrusion Header
• 1x CPU Fan Connector (3-pin)
• 1x Chassis Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x Front Panel Audio Connector
• 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x USB 3.0 Header by ASMedia ASM1074 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Комплектът включва:

• Упътване за бързо стартиране
• 2x SATA кабел
• 1x WiFi Module Screw

Сертификати:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
