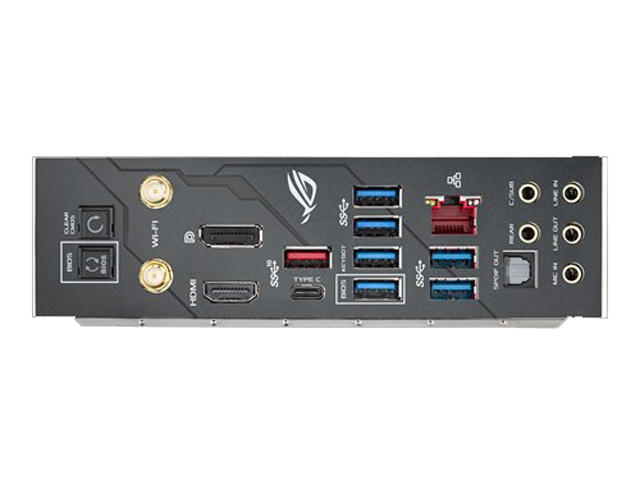

Интерфейси:
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45)
- 2 x USB 3.1 Gen 2 ()Type-A + USB Type-C
- 6 x USB 3.1 Gen 1
- 1 x Optical S/PDIF out
- 1 x Clear CMOS бутон
- 1 x USB BIOS Flashback бутон
- 5 x ЛЕД-осветени аудио жакове
Слотове за разширение:
- 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
- 1 x PCIe 3.0/2.0 x16
- 1 x PCIe 3.0 x4
Конектори:
- 1 x AAFP connector
- 2 x Aura RGB Strip Headers
- 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x TPM connector(s)
- 8 x SATA 6Gb/s connector(s)
- 2 x Chassis Fan connector(s)
- 2 x W_PUMP+ connector
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x 4-pin EZ_PLUG Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s) (Q-Connector)
- 1 x Slow Mode switch(es)
- 1 x Thermal sensor connector(s)
- 1 x EZ Plug connector(s) (4-pin Molex power connector)
- 1 x Power-on button(s)
- 1 x Reset button(s)
- 1 x BIOS Switch button(s)
- 1 x Clear CMOS button(s)
- 1 x 5-pin EXT_FAN(Extension Fan) connector
- 1 x USB BIOS Flashback button(s)
- 1 x LN2 Mode jumper(s)
- 1 x ROG extension (ROG_EXT) header(s)
- 1 x Safe Boot button
- 1 x ReTry button
- 1 x T_Sensor Connector
- 2 x W_Pump+ Header
- 1 x EXT_Fan header
- 1 x W_IN header
- 1 x W_OUT header
- 1 x W_FLOW header
- 1 x USB 3.1 Gen 2 front panel connector
- 1 x MemOK! Button
- 1 x RSVD Switch
- 1 x 9 pin Monoblock sensor
- 8 x Radiator Fan Headers
Съхранение:
Intel Z270 чипсет:
- 1 x M.2 Socket 3, с М ключ, тип 2242/2260/2280 поддържани дискови устройства (both SATA & PCIE режим )
- 1 x M.2 Socket 3, с М ключ, тип 2242/2260/2280/22110 поддържани дискови устройства (both SATA & PCIE режим )
- Поддържа Raid 0, 1, 5, 10
- Поддържа Intel Smart Response Technology
- Intel Rapid Storage Technology поддръжка
- Intel Optane Memory Ready
Памет:
- 4 цокъла DDR4 DIMM, поддържащи до 64 GB системна памет
- Поддръжка на модули памет DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/2666(O.C.)/2400(O.C.) MHz Memory
*7ма генерация Intel CPU поддържа DDR4 до 2400;6та генерация Intel CPU поддържа DDR4 до 2133Mhz
Безжична мрежа и блутуут:
- Wi-Fi 802.11 a/b/g/n/ac
- Поддържа MU-MIMO
- Bluetooth V4.1
