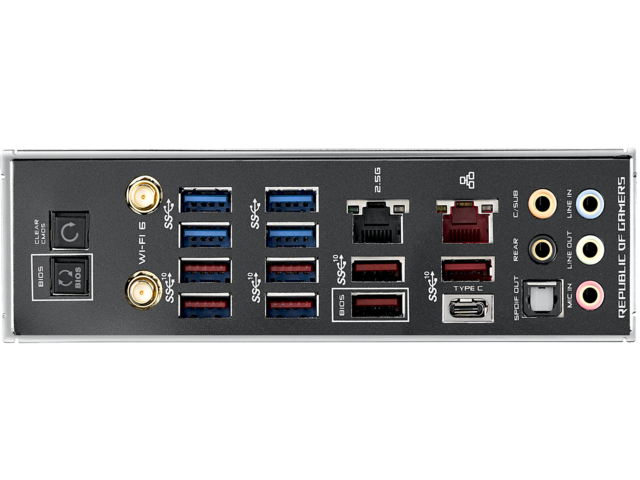

Интерфейси:
- 1 x Optical S/PDIF out
- 1 x Clear CMOS button(s)
- 1 x Anti-surge 2.5G LAN (RJ45) port
- 1 x USB BIOS Flashback® Button(s)
- 1 x ASUS Wi-Fi Module
- 5 x Gold-plated audio jacks
- 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
- 8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
- Anti-surge LAN (RJ45) port
Слотове за разширение:
-
2 x PCIe 4.0 x16 (x16 or dual x8)
-
2 x PCIe 3.0 x16 (x16 or dual x8)
-
1 x PCIe 3.0 x16 (x8 mode)
-
1 x PCIe 4.0 x16
-
1 x PCIe 4.0 x1
Конектори:
- 2 x Aura RGB Strip Headers
- 2 x Addressable Gen 2 header(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
- 1 x TPM connector(s)
- 8 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 1 x H_AMP fan connector
- 1 x W_PUMP+ connector
- 1 x 4-pin EATX 12 V Power connector
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin EATX 12V Power connectors
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Slow Mode switch(es)
- 1 x Reset button(s)
- 1 x Node Connector(s)
- 1 x LN2 Mode jumper(s)
- 1 x Safe Boot button
- 1 x ReTry button
- 1 x System panel connector
- 1 x T_Sensor Connector
- 1 x W_IN header
- 1 x W_OUT header
- 1 x W_FLOW header
- 1 x Start button
- 1 x Speaker connector
- 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
- 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Съхранение:
- 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
- 8 x SATA 6Gb/s порта
- Поддържа RAID 0, RAID 1 и RAID 10
Памет:
- 4 x DDR4 DIMM слота, поддържащи до128 GB системна памет
- Архитектура с две канални памети
- Поддръжка за модули памет DDR4 3600+ (O.C.) / 3400 (O.C.) / 3333 (O.C.) / 3200 (O.C.) / 3000 (O.C.) / 2933/2667/2400/2133 MHz
- Поддръжка за ECC Un-буферирани DIMM 1Rx8 / 2Rx8 модули памет
* ECC функцията е ограничена, ако се използва APU AMD Athlon 200.
- Поддръжка на модули с памет DIMM 1Rx8 / 2Rx8 / 1Rx16, които не са с ECC
- Поддръжка на модули с памет за изключителна памет (XMP)
Wireless Data Network и Bluetooth:
- Wi-Fi 802.11 a/b/g/n/ac/ax
- Поддържа MU-MIMO
- Поддържа двубандова честота 2.4/5 GHz+ 60GHz
- Bluetooth 5.0
