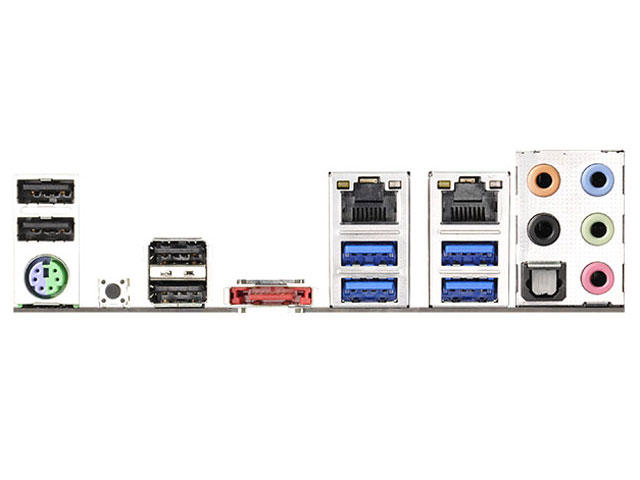

Интерфейси:

• 1 x PS/2 мишка/ клавиатура
• 1 x Optical SPDIF Out Port
• 1 x eSATA Connector
• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
• 1 x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 2 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE2 @ x16 mode)
• 1 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode)

 (Ако инсталирате процесор с 28 пътеки, PCIE1/PCIE2 ще работят на x16/x8.)

Kонектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x HDD Saver Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector ( актуализирайте до последната версия на BIOS за поддръжка на Thunderbolt технологията.)
• 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Dr. Debug with LED
• 1 x BIOS Selection Switch

Съхранение:

•  10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel^® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
• 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

*S_SATA3_3 connector is shared with the eSATA port, S_SATA3_2 connector is shared with Ultra M.2 Socket

**RAID is supported on SATA3_0 ~ SATA3_5 ports only.

Памет:

• 4 цокъла DDR4 DIMM, поддържащи до 64 GB системна памет
• Поддръжка на модули памет DDR4 3000+(OC)/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, небуферирана памет

Комплекта съдържа:

• 1 x ASRock SLI_Bridge Card
•  I/O Shield
• 2 x SATA Data кабел
• 1 x HDD Saver кабел
• 1 x Screw for Ultra M.2 Socket

Сертификати:

•  FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
