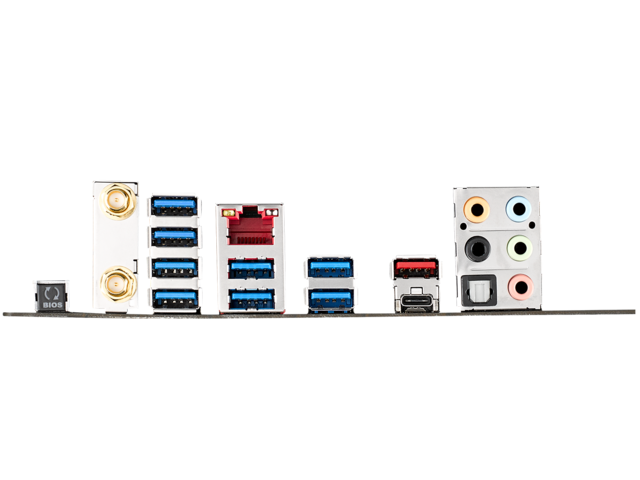

Интерфейси:

• 1 x LAN (RJ45)
• 2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-C
• 8 x USB 3.1 Gen 1 (син)
• 1 x Optical S/PDIF out
• 5 x аудио жака
• 1 x USB BIOS Flashback бутон
• 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac и Bluetooth v4.2 модул

Слотове за разширение:

• AMD Ryzen Threadripper Processors
  4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 режим)
• AMD X399 chipset
  1 x PCIe 2.0 x4 (макс. при режим x4)
  1 x PCIe 2.0 x1

Конектори:

• 1 x Q_Code
• 1 x Aura Addressable Strip Header(s)
• 1 x U.2 port
• 2 x RGB Header(s)
• 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x M.2_FAN connector
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x USB 3.1 Gen 2 front panel connector

Съхранение:

• AMD Ryzen Threadripper Processors :
  1 x M.2 Socket 3, с M key,тип 2242/2260/2280 поддържащи дискови устройства (SATA & PCIE 3.0 x 4режим)
  1 x M.2 Socket 3, с M key, тип 2242/2260/2280/22110 поддържащи дискови устройства (SATA & PCIE 3.0 x 4 режим)
  1 x U.2 порт
• AMD X399 chipset :
  6 x SATA 6Gb/s конектори
  Поддържа Raid 0, 1, 10
