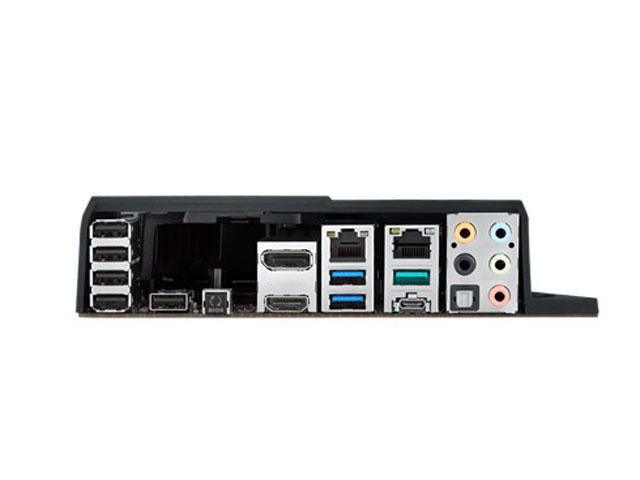

Интерфейси:

• 1 x DisplayPort
• 1 x HDMI
• 2 x LAN (RJ45)
• 1 x USB 3.1 Type-A
• 1 x USB 3.1 Type-C
• 4 x USB 2.0
• 2 x USB 3.0  (one port can be switched to USB BIOS Flashback)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x USB BIOS Flashback Button(s)
• 1 x 8-channel Audio I/O
• 1 x TUF Detective USB port

Слотове за разширение:

• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
• PCIe 3.0/2.0 x16 (max at x4 mode)(PCIe x16_3 Слот споделя честотна лента с SATA6G_56 . X16_3 The PCIe е зададен по подразбиране в режим x2 . Поддържа Intel® RST за PCIE RAID съхранение.
• 3 x PCIe 3.0/2.0 x1

Конектори:

• 1 x AAFP connector
• 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x SATA Express connector: , Compatible with 4 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (4 -pin)
• 1 x CPU OPT Fan connector(s) (4 -pin)
• 6 x Chassis Fan connector(s) (4 -pin)
• 3 x Assistant Fan connector(s) (1 x 3 -pin, [White])
• 1 x S/PDIF out header(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x Chassis Intrusion connector(s)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 3 x Thermal sensor connector(s)
• 1 x CPU OV
• 1 x Clear CMOS jumper(s)
• 1 x Water Pump header (4-pin)
• 1 x 14-1 pin TPM connector

Съхранение:

• 2 x SATA Express порт, съвместим с 4 x SATA 6.0 Gb/s портове
• 1 x M.2 x4 Socket 3, с M Key, тип 2242/2260/2280/22110 поддържащ дискови устройства с режим (SATA & PCIE )
• 6 x SATA 6Gb/s порта
• Поддържащ Raid 0, 1, 5, 10
• Intel Rapid Storage Technology supports
• Поддържащ Intel Smart Response Technology

ASMedia SATA 6Gb/s controller :

• 2 x SATA 6Gb/s порта

Памет:

• 4 цокъла DDR4 DIMM, поддържащи до 64 GB системна памет
• Поддръжка на модули памет DDR4 2400/2133 non-ECC, небуферирана памет

*7ма генерация  Intel CPU поддържа DDR4 до 2400;6та генерация Intel CPU поддържа DDR4 до 2133Mhz

Комплектът включва:

• ASUS Q-Shield
• 4 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x CPU installation tool
• 1 x Supporting DVD
• 1 x HYPERM.2 X4 with M Key design, type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
• 1 x SLI bridge(s)
• 1 x Q-connector(s) (1 in 1)
• 2 x Accessory Fan(s) ( 35 /40 mm )
• 1 x Bead Chain for Metalic Cover
• 1 x Accessory Package(s):

- 3 x PCIe x16 slot dust cover(s)
- 2 x DRAM slot dust cover(s)
- 3 x PCIe x1 slot dust cover(s)
- 2 x Short fan screw(s)
- 4 x Long fan screw(s)
- 3 x Thermistor cable(s)
- 1 x back I/O dust frame
- 1 x back I/O dust grid
- 1 x connector dust cover collection (On board USB 3.0, DVI, HDMI, DP, LAN)
- 2 x On board USB 2.0 connector dust cover(s)
- 8 x back I/O USB connector dust cover(s)
- 7 x On board SATA connector dust cover(s)
- 2 x SATA Express conector dust cover(s)
- 5 x Audio connector dust cover(s)
- 1 x back I/O USB 3.1 type-C connector dust cover(s)
