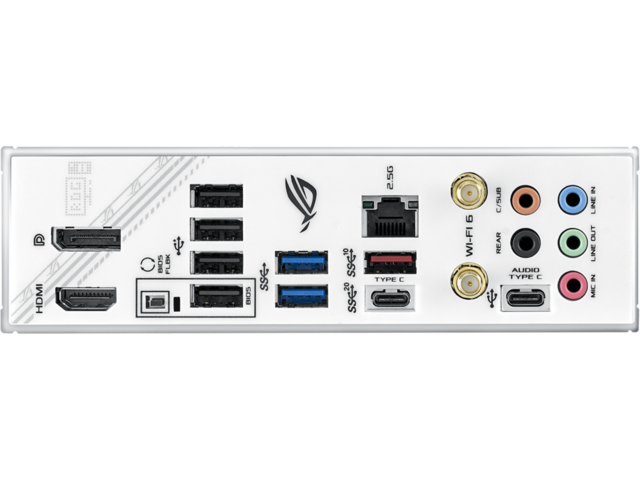

Интерфейс:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
• 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
• 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®)
• 1 x HDMI™ port
• 1 x DisplayPort
• 1 x ASUS Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

Wireless & Bluetooth: Intel WiFi 6 (802.11ax)

Конектори:

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header(s)
  • 1 x 4-pin CPU OPT Fan header(s)
  • 1 x 4-pin AIO Pump header(s)
  • 3 x 4-pin Chassis Fan header(s)
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage related
  • 2 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
  • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Miscellaneous
  • 2 x AURA Addressable Gen 2 header(s)
  • 2 x AURA RGB header(s)
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-5 pin System Panel heade
  • 1 x Thunderbolt™ header
  • 1 x S/PDIF Out header

Съхранение:

• M.2_1 slot (Key M), type 2242/2260/2280/22110

• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

• 6 x SATA 6Gb/s ports

Слотове за разширение:

• 1 x PCIe 4.0/3.0 x16 slot(s)
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 3 x PCIe 3.0 x1 slots

Памет:

• 2 x DIMM
• Двуканална архитектура
• OptiMem II
• Поддържа Intel Extreme Memory Profile (XMP)
