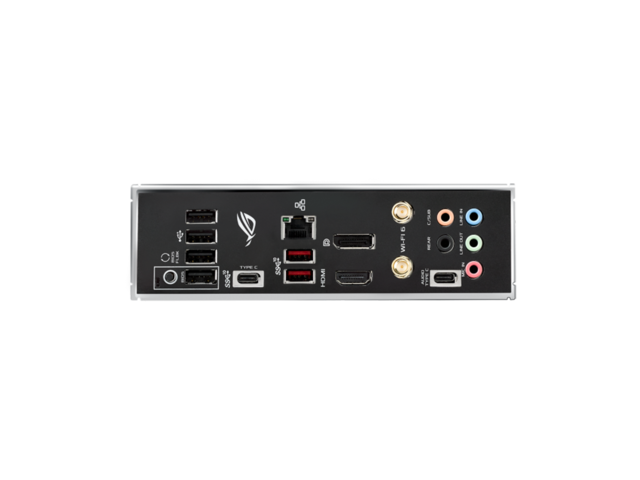

Интерфейси:
- 3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®)
- 5 x USB 2.0 (1 for audio USB Type-C®)
- 1 x BIOS FlashBack™ Button(s)
- 1 x Intel® I225-V 2.5Gb Ethernet
- 1 x DisplayPort
- 1 x HDMI
- 5 x Audio jack(s)
- ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Wireless & Bluetooth:
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
- Intel® Wi-Fi 6 AX200
- Supports dual band frequency 2.4/5 GHz
- Supports channel bandwidth: HT20/HT40/HT80/HT160
- Bluetooth v5.1*BT 5.1 function will be ready in Windows 10 build 19041 or later
Памет:
- 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
AMD RyzenTM 4000 G-Series Processors
- 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
- OptiMem II
- Двуканална архитектура на паметта
Съхранение:
AMD RyzenTM 4000 G-Series Processor :
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
- 6 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 10
Слотове за разширение:
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
AMD B550 Chipset
- 1 x PCIe 3.0 x16 (x4 mode)
- 2 x PCIe 3.0 x1
- 2 x PCIe 4.0 x16 (x16 or dual x8)
- 2 x PCIe 3.0 x16 (x16 or dual x8)
Конектори:
- 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 1 x Thunderbolt header(s)
- 1 x Q-Code
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 1 x AAFP connector
- 2 x Aura RGB Strip Header(s)
- 2 x Addressable Gen 2 header(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x System panel(s)
- 1 x Thermal sensor connector(s)
- 1 x Clear CMOS jumper(s)
Поддържа NVIDIA 2-Way SLI® Technology
Поддържа AMD 3-Way CrossFireX™ Technology
