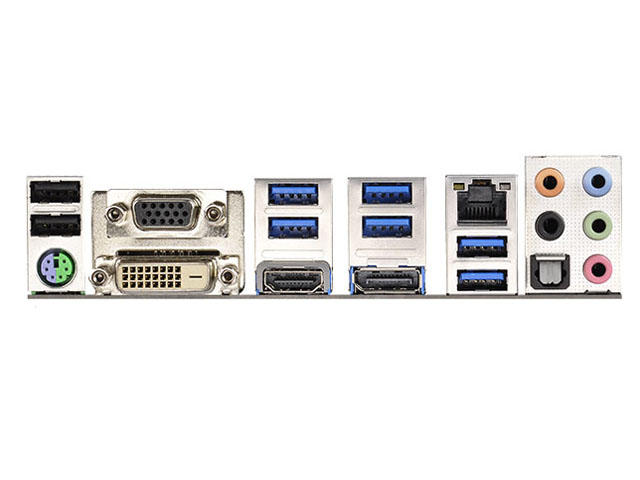

Интерфейси:

• 1 x PS/2 мишка/клавиатура
• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out
• 2 x USB 2.0
• 2 x USB 3.0 (ASMedia ASM1042AE) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 (Intel^® Z97) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN с LED индикатор
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 3 x PCI Express 3.0 x16 Слотове (PCIE2/PCIE5/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE5); triple at x8 (PCIE2) / x4 (PCIE5) / x4 (PCIE6)
• 3 x PCI Express 2.0 x1 Слотове
• Поддържа AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
• Поддържа NVIDI Quad SLI and SLI
• 15μ Gold Contact in VGA PCIe Slot (PCIE2)

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x HDD Saver Connector
• 1 x PCIe Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (поддържа 4 USB 2.0 ports) (поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (поддържа 2 USB 3.0 ports) (поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x Dr. Debug with LED
• 1 x Power Switch with LED
• 1 x Reset Switch with LED
• 1 x BIOS Selection Switch

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors by Intel^® Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 13 and Intel^® Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
• 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket)
• 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

Аксесоари:

• 1 x ASRock SLI_Bridge_2S Card
• 4 x SATA Data кабел
• 1 x HDD Saver кабел
• 1 x Screw for M.2_SSD (NGFF) Socket 3

Сертификати:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
