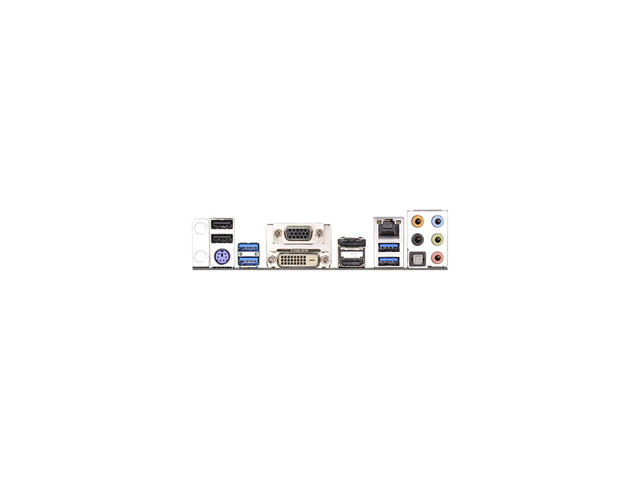

Интерфейси:

• 1x PS/2 Мишка/клавиатура
• 1x D-Sub
• 1x DVI-D
• 1x HDMI
• 1x DisplayPort 1.2
• 1x Optical SPDIF Out
• 2x USB 2.0
• 2x USB 3.0
• 2x USB 3.0
• 1x RJ-45
• HD аудио жакове: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 2x SATA3 6.0 Gb/s Connectors by AMD FT3 Kabini A4-5000 Quad-Core APU, support NCQ, AHCI and Hot Plug
• 2x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

Слотове за разширение:

• 1x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)
• 1x Mini-PCI Express Slot

Конектори:

• 1x COM Port Header
• 1x TPM Header
• 1x CPU Fan Connector (3-pin)
• 2x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 1x 24 pin ATX Power Connector
• 1x Front Panel Audio Connector
• 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x USB 3.0 Header by Etron EJ188H (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
