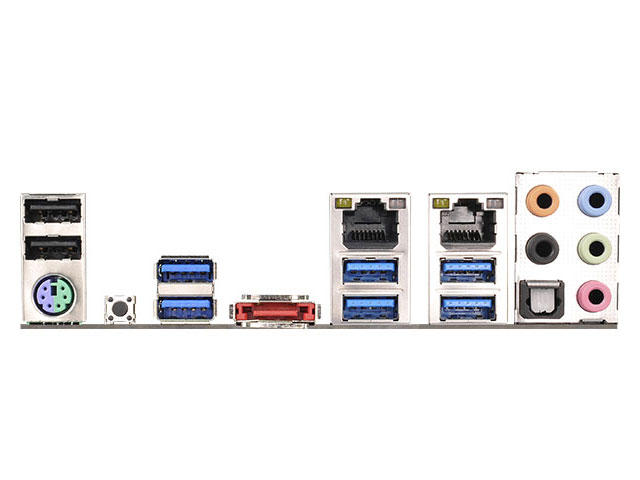

Интерфейси:

• 1x PS/2 мишка/клавиатура
• 1x Optical SPDIF Out
• 1x eSATA
• 1x USB 2.0
• 1x Fatal1ty Mouse Port (USB 2.0)
• 4x USB 3.0
• 2x USB 3.0
• 2x RJ-45 LAN
• 1x Clear CMOS Switch
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 10 x SATA3 6.0 Gb/s Connector (RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
• 1x eSATA Connector, поддържа NCQ, AHCI и Hot Plug
• 1x Ultra M.2 Socket, поддържа M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул

Слотове за разширение:

• 3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode)*
• 2 x PCI Express 2.0 x1 Slots
• 1 x mini-PCI Express Slot
• Поддържа AMD Quad CrossFireX, 3-Way CrossFireX и CrossFireX
• Supports NVIDIA Quad SLI, 3-Way SLI and SL

Конектори:

• 1x COM Port Header
• 1x TPM Header
• 1x Power LED Header
• 2x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
• 1x Power Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1x HDD Saver Connector
• 1x PCIe Power Connector
• 1x Front Panel Audio Connector
• 1x Thunderbolt™ AIC Connector
• 2x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x Vertical Type A USB 2.0
• 2x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x Dr. Debug with LED
• 1x Power Switch with LED
• 1x Reset Switch with LED
• 1x BIOS Selection Switch

Комплекта включва:

• 1x ASRock SLI_Bridge_2S Card
• 1x ASRock 3-Way SLI-2S1S Bridge Card
• Quick Installation Guide, Support CD, I/O Shield
• 4x SATA Data Cables
• 1x HDD Saver Cable
• 1x Screw for Ultra M.2 Socket
• 1x Screw for mini-PCIe Slot

Сертификати:

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
